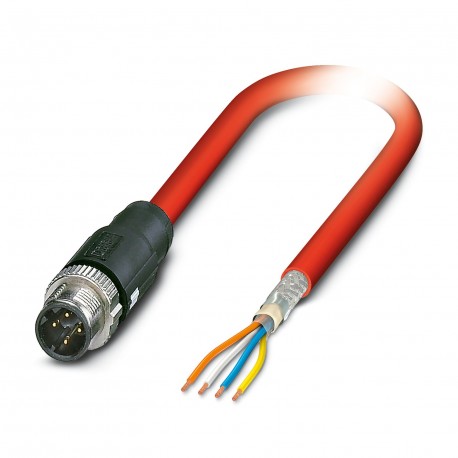

Bus system cable Bus System Cable, Sercos CAT5 (100 MBit/s), 4-poles, Straight M12 connector, encoding: D/IP67, to free cable end, cable length: 2 m Bus system cable, Sercos CAT5 (100 MBit/s), 4-pin, PVC/PVC, traffic red RAL 3020, connector straight M12, coding: D / IP67, to free end of line, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1419172
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 317 (PC-2011)
GTIN4046356541176
Weight per Piece (excluding packing)157.800 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65
Ambient temperature (operation)-10 °C ... 60 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categorySercos CAT5 (IEC 11801), 100 Mbps
Alternative short product descriptionSercos III cable

Characteristics head 1

Head typePlug straight M12
Colorblack

Characteristics head 2

Head typefree cable end

Cable

Cable typeSercos III
Cable type (abbreviation)93K
UL AWM style21694 (60°C / 600 V)
Signal type/categorySercos CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulationapprox. 1.55 mm
Wire colorsWhite, yellow, blue, orange
Type of pair shieldingAluminum-lined polyester foil
Overall twistStar quad
ShieldingTinned copper braided shield
External sheath, colorsignal red RAL 3020
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight68 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 0.5 GΩ*km
Conductor resistance≤ 120 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 Hz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
