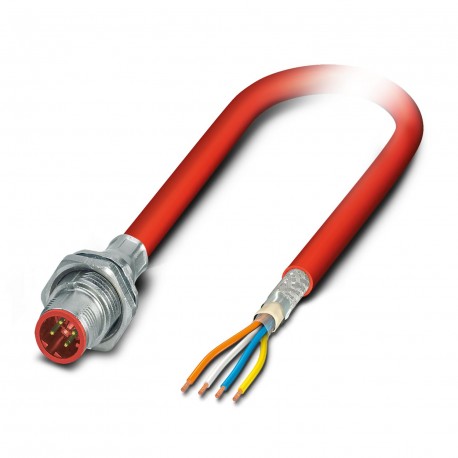

PHOENIX CONTACT VS-MSDBPS-OE-93K-LI/0,5 VS-MSDBPS-OE-93K-LI/0,5 1419158 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-MSDBPS-OE-93K-LI/0,5 1419158 PHOENIX CONTACT Bus system cable

VS-MSDBPS-OE-93K-LI/0,5

1419158

PHOENIX CONTACT

1 Pcs.

Bus system cable Conect. plug. to be apar. wall poster., Sercos CAT5, 4-pole, PVC, red RAL 3020, shielded, Male connector, straight, M12-SPEEDCON, coding: D, to free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, Sercos III, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239237 Device connector rear wall, Sercos CAT5, 4-pin, PVC, red RAL 3020, shielded, pin, straight, M12-SPEEDCON, coding: D, on free cable end, rear wall mounting, M16 x 1.5, cable connection, cable length: 0.5 m, Sercos III, alternative product according to RoHS II without exception 6c (Pb < 0.1 %) Item no.: 1239237

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1419158
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 317 (PC-2011)
GTIN4046356541046
Weight per Piece (excluding packing)60.000 g
Custom tariff number85444210
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Degree of protectionIP67
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)

General data

Rated current at 40°C4 A
Rated voltage250 V
Number of positions4
Signal type/categorySercos
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionSercos III cable

Characteristics head 1

Head typeFlush-type plug straight M12 SPEEDCON
No. of positions (pin connector pattern)4

Characteristics head 2

Head typefree cable end
No. of positions (pin connector pattern)4

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typeSercos III
Cable type (abbreviation)93K
UL AWM style21694 (60°C / 600 V)
Signal type/categorySercos CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulationapprox. 1.55 mm
Wire colorsWhite, yellow, blue, orange
Type of pair shieldingAluminum-lined polyester foil
Overall twistStar quad
ShieldingTinned copper braided shield
External sheath, colorsignal red RAL 3020
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight68 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 0.5 GΩ*km
Conductor resistance≤ 120 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 Hz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1419158 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 250 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Nickel
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No
