View larger
Images are for illustrative purposes only. Please refer to data sheet for details

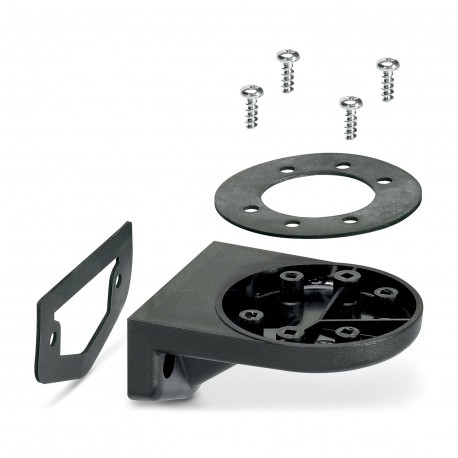

PSD-S ME BR-BM/HCR 2700149 PHOENIX CONTACT Mounting brackets
PSD-S ME BR-BM/HCR
2700149
PHOENIX CONTACT
1 Pcs.
Mounting brackets
Angle for foot mounting, hidden cable conduction, black
Angle for base mounting, concealed cable routing, black
Automation > Wall bracket for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Assembly element |
| Scope of delivery | 4 x plastic screw 2 x seal |
| 4 x plastic screw 2 x seal | |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 44.2 mm |
| Height | 98.5 mm |
| Diameter | 79 mm |
Material specifications
| Color | black |
| Material | ABS-PC |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 60 °C |
Mounting
| Mounting type | Base mounting, concealed cable routing |
| Tube mounting | |
| Assembly note | Seal is supplied with |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Colour (EF000007) | Black |
