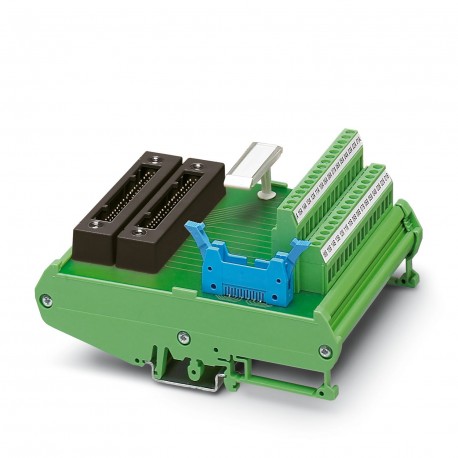

PHOENIX CONTACT FLKM-KS40/AO16/YCS FLKM-KS40/AO16/YCS 2314260 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM-KS40/AO16/YCS 2314260 PHOENIX CONTACT Passive module

FLKM-KS40/AO16/YCS

2314260

PHOENIX CONTACT

1 Pcs.

Passive module 16-channel analog module with screw connection and two 40-pole system connections. Suitable for Yokogawa AAI543 card.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
No. of channels16
Data management status
Article revision05
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage (DC)≤ 30 V DC
Current (per branch)≤ 0.1 A
Air clearances and creepage distances
Rated insulation voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O cardAAI543
Supported controller YOKOGAWA STARDOM
Suitable I/O cardNFAI543
Connection data
Connection 1 (control level)
Connection methodYokogawa KS-compatible
Number of connections2
Number of positions40
NoteUsable system cables: Phoenix Contact YUC40, Yokogawa KS1
Tightening torque0.5 Nm
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Number of positions48
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Connection 3 (HART connector)
Connection methodHART connector
Number of connections1
Number of positions26
Pitch1.27 mm
Signaling
Status display presentNo
Dimensions
Item dimensions
Width107.5 mm
Height125.4 mm
Depth65.9 mm
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≤ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2314260 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 48
Rated voltage (EF000228) 30 V
Rated current (EF000227) 0.1 A
Depth (EF000049) 65.9 mm
Width (EF000008) 107.5 mm
Height (EF000040) 125.4 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
