PHOENIX CONTACT FLKMS-KS40/SI/AI16/YCS FLKMS-KS40/SI/AI16/YCS 2314273 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKMS-KS40/SI/AI16/YCS 2314273 PHOENIX CONTACT Passive module

FLKMS-KS40/SI/AI16/YCS

2314273

PHOENIX CONTACT

1 Pcs.

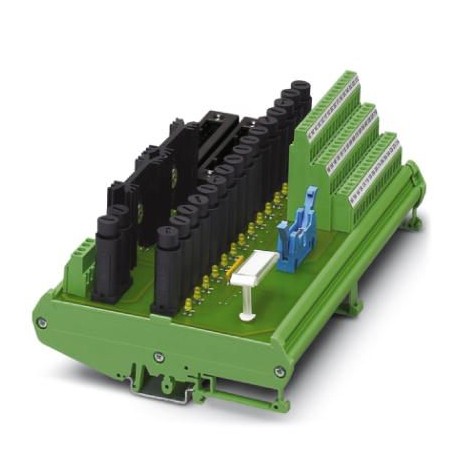

Passive module 16-channel analogue module with screw connection and one fuse per signal trace (5 x 20 mm) with fault indicator. The voltage supply and the 40-pole system connection are redundantly operated. Suitable for Yokogawa AAI141 and AAI143 cards.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2314273
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 521 (C-5-2017)
GTIN4046356143790
Weight per Piece (excluding packing)749.800 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width214 mm
Height126 mm
Depth81 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage30 V DC
Max. perm. current (per branch)100 mA
Max. permissible current (all branches)2 A (P1+, P2+)
Number of positions40
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodYokogawa KS-compatible
Torque0.5 Nm
Number of connections2
Number of positions40
NoteUsable system cables: Phoenix Contact YUC40, Yokogawa KS1

Connection data for connection 3

Connection nameHART connector
Connection methodHART connector
Number of connections1

Supported controller

ControllerYOKOGAWA CS3000 CentumVP
- suitable I/O cardAAI141
AAI143
ControllerYOKOGAWA STARDOM
- suitable I/O cardNFAI141
NFAI143
NFAI135

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage50 V
Rated surge voltage0.5 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2314273 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 48
Rated current (EF000227) 0.1 A
Depth (EF000049) 79.3 mm
Width (EF000008) 215.5 mm
Height (EF000040) 125.4 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
