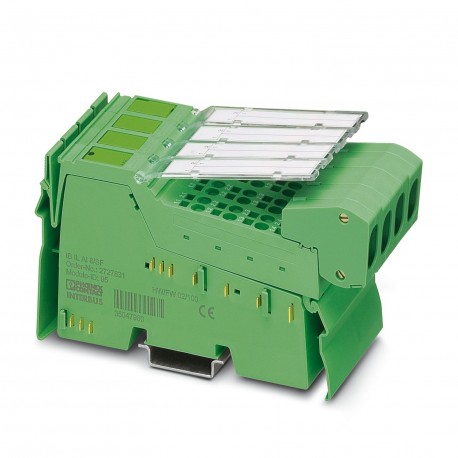

PHOENIX CONTACT IB IL AI 8/SF-PAC IB IL AI 8/SF-PAC 2861412 PHOENIX CONTACT Inline terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IB IL AI 8/SF-PAC 2861412 PHOENIX CONTACT Inline terminal

IB IL AI 8/SF-PAC

2861412

PHOENIX CONTACT

1 Pcs.

Inline terminal Inline, Analog Input Module, Analog Inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 V ... 25 V, -25 V ... 25 V, 0 V ... 50 V, 0 mA... 20 mA, 4 mA... 20 mA, -20 mA... 20 mA, 0 mA... 40 mA, -40 mA... 40 mA, connection technology: 2 conductors, transmission rate on the local bus: 500 kBit/s, protection rating: IP20, including inline connectors and marking fields

Automation > Fieldbus, decentr. periphery - analogue I/O module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingnyofjdskjy.jpg
Width48.8 mm
Height136.8 mm
Depth71.5 mm
Note on dimensionsHousing dimensions
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Interfaces
Inline local bus
Connection methodInline data jumper
Transmission speed500 kbps
Transmission physicsCopper
System properties
Module
ID code (dec.)95
ID code (hex)5F
Length code (hex)02
Length code (dec)02
Process data channel32 bit
Input address area4 Byte
Output address area4 Byte
Register length32 bit
Required parameter data6 Byte
Required configuration data5 Byte
Input data
Analog: General
Input nameAnalog inputs
Description of the inputSingle-ended inputs, voltage or current
Number of inputs8
A/D conversion timeapprox. 10 µs
A/D converter resolution16 bit
Connection methodInline shield connector
Connection technology2-conductor
Note regarding the connection technologyshielded
Current input signal0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA
0 mA ... 40 mA
-40 mA ... 40 mA
Input resistance current input25 Ω (Shunt)
Voltage input signal0 V ... 5 V
-5 V ... 5 V
0 V ... 10 V
-10 V ... 10 V
0 V ... 25 V
-25 V ... 25 V
0 V ... 50 V
Input resistance of voltage input> 240 kΩ
Data formatsIB IL, IB ST, IB RT, standardized representation, PIO format
Filtering1st order low pass
Limit frequency (3 dB)3.5 kHz
Measuring principleSuccessive approximation
Measured value resolution16 bits (15 bits + sign bit)
Measured value representation16 bit two's complement
Protective circuitSurge protection, overcurrent protection; max. 100% overload (in relation to the nominal value)
Product properties
Product typeI/O component
Product familyInline
Typemodular
Scope of deliveryincluding Inline connectors and marking fields
Operating modeProcess data operation with 2 words
Diagnostics messagesFailure of the power supply at UANA
I/O error Error message in the process data
User error Error message in the process data
Data management status
Article revision11
Insulation characteristics
Overvoltage categoryII (IEC 60664-1, EN 60664-1)
Pollution degree2 (IEC 60664-1, EN 60664-1)
Electrical properties
Maximum power dissipation for nominal condition1.25 W
Potentials: Communications power (UL)
Supply voltage7.5 V DC (via voltage jumper)
Current drawmax. 55 mA
typ. 48 mA
Potentials: Supply of analog modules (UANA)
Supply voltage24 V DC (via voltage jumper)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current drawmax. 35 mA
typ. 24 mA
Electrical isolation/isolation of the voltage ranges
Test voltage: 7.5 V supply (bus logic), 24 V supply UANA/ I/O500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V supply (bus logic), 24 V supply UANA/ functional ground500 V AC, 50 Hz, 1 min.
Test voltage: I/O/functional ground500 V AC, 50 Hz, 1 min.
Connection data
Connection technology
Connection nameInline connector
Conductor connection
Connection methodSpring-cage connection
Conductor cross section rigid0.08 mm² ... 1.5 mm²
Conductor cross section flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Inline connector
Connection methodSpring-cage connection
Conductor cross section, rigid0.08 mm² ... 1.5 mm²
Conductor cross section, flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 55 °C
Degree of protectionIP20
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Standards and regulations
Protection classIII (IEC 61140, EN 61140, VDE 0140-1)
Mounting
Mounting typeDIN rail mounting

ETIM for 2861412 PLC's (EC001596)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Input, current (EF003204) Yes
Input, voltage (EF003205) Yes
Input, resistor (EF003206) No
Input, resistance thermometer (EF003207) No
Input, thermocouple (EF003208) No
Input signal, configurable (EF003209) Yes
Resolution of the analogue inputs (EF003575) 16 Bit
Output, current (EF003212) No
Output, voltage (EF003213) No
Output signal configurable (EF003214) No
Number of analogue inputs (EF001994) 8
Number of analogue outputs (EF001995) 0
Analogue inputs configurable (EF008518) Yes
Analogue outputs configurable (EF008519) No
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) Yes
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
Radio standard GSM (EF008524) No
Radio standard UMTS (EF008525) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
Type of electric connection (EF003961) Other
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) Yes
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 48.6 mm
Height (EF000040) 138.44 mm
Depth (EF000049) 70.51 mm
