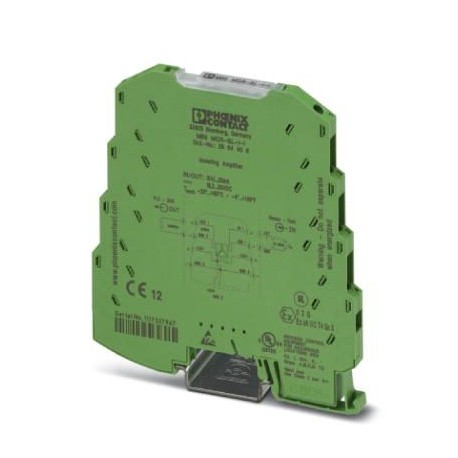

PHOENIX CONTACT MINI MCR-SL-I-I MINI MCR-SL-I-I 2864406 PHOENIX CONTACT Signal conditioner View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MINI MCR-SL-I-I 2864406 PHOENIX CONTACT Signal conditioner

MINI MCR-SL-I-I

2864406

PHOENIX CONTACT

1 Pcs.

Signal conditioner MCR 3-way separation amplifier, for galvanic separation of analog signals, with screw connection, input signal: 0(4) mA ... 20 mA, output signal: 0(4) mA ... 20 mA

Automation > Isolation amplifier
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2864406
Packing unit1 pc
Catalog pagePage 97 (C-7-2015)
GTIN4017918956158
Weight per Piece (excluding packing)71.100 g
Custom tariff number85437090
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height93.1 mm
Depth102.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 65 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Number of inputs1
Configurable/programmableno
Current input signal0 mA ... 20 mA
4 mA ... 20 mA
Max. input current50 mA
Input resistance current inputapprox. 50 Ω

Output data

Number of outputs1
Configurable/programmableno
Current output signal0 mA ... 20 mA
4 mA ... 20 mA
Max. output current28 mA
Load/output load current output< 500 Ω (at 20 mA)
Ripple< 20 mVPP(at 500 Ω)

Power supply

Nominal supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
Max. current consumption< 20 mA
Power consumption< 450 mW

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.12
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Stripping length12 mm
Screw threadM3

General

No. of channels1
Maximum transmission error≤ 0.1 % (of final value)
Maximum temperature coefficient< 0.01 %/K
Temperature coefficient, typical< 0.002 %/K
Limit frequency (3 dB)approx. 100 Hz
Step response (10-90%)approx. 3.2 ms
Protective circuitTransient protection
Electrical isolationBasic insulation according to EN 61010
Overvoltage categoryII
Degree of pollution2
Rated insulation voltage50 V AC/DC
Test voltage, input/output/supply1.5 kV (50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Colorgreen
Housing materialPBT
Mounting positionany
Assembly instructionsThe T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715.
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5
GLGL EMC 2 D
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2

EMC data

DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
Typical deviation from the measuring range final value10 %
DesignationFast transients (burst)
Standards/regulationsEN 61000-4-4
Typical deviation from the measuring range final value10 %
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Typical deviation from the measuring range final value10 %

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Connection in acc. with standardCUL
DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
EN 61000-4-4
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Electrical isolationBasic insulation according to EN 61010
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5
GLGL EMC 2 D
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2864406 Sensors (EC002653)
Feature Name Feature Value
Type of power supply (EF001469) Other
Rated supply voltage DC (EF007078) 19.2 V
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 0
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 1
Number of input ranges 4 mA ... 20 mA (EF006921) 1
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 1
Number of output ranges 4 mA ... 20 mA (EF006874) 1
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Number of channels (EF000259) 1
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Galvanic separation between inputs (EF007224) No
SIL according to IEC 61508 (EF009889) None
Height (EF000040) 93.1 mm
Width (EF000008) 6.2 mm
Depth (EF000049) 101.2 mm
Power consumption (EF000346) 0.45 W
Load (EF007096) 500 Ohm
Operating temperature (EF002393) -20 °C
Temperature drift (EF007507) 0.01 %/K
Construction type of device (EF007276) Built-in device
Type of electric connection (EF003961) Screw connection
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20
