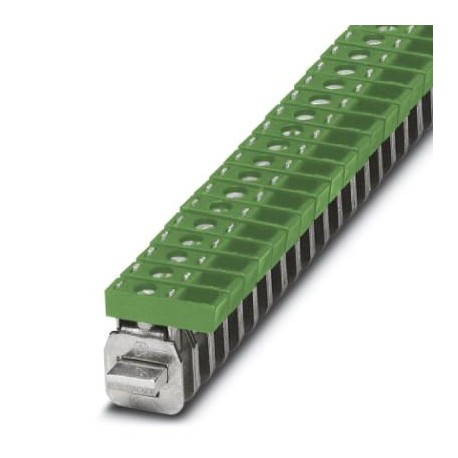

PHOENIX CONTACT AKG 4 GN AKG 4 GN 3062935 PHOENIX CONTACT Connection terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AKG 4 GN 3062935 PHOENIX CONTACT Connection terminal block

AKG 4 GN

3062935

PHOENIX CONTACT

50 Pcs.

Connection terminal block Terminal block, nominal voltage: 300 V, nominal current: 41 A, connection type: Screw connection, Sizing cross-section: 4 mm², cross-section: 0.5 mm² - 6 mm², mounting: Neutral busbar, color: green

Automation > Busbar terminal
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3062935
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 598 (C-3-2017)
GTIN4046356558327
Weight per Piece (excluding packing)5.470 g
Custom tariff number85369010
Country of originDE (Germany)

General

Colorgreen
Insulating materialPA
Nominal cross section4 mm²
Flammability rating according to UL 94V2
Maximum load current41 A
Nominal current IN41 A
Maximum load current41 A (with 6 mm² conductor cross section)
Nominal voltage UN300 V
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Relative insulation material temperature index (Elec., UL 746 B)125 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Oxygen index (DIN EN ISO 4589-2)28,2%

Dimensions

Length23.7 mm
Width7 mm

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.2.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.2.5 mm²
Connection methodScrew connection
Stripping length16 mm
Screw threadM4
Tightening torque, min1.5 Nm
Tightening torque max1.8 Nm

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3062935 Low-voltage industrial controls and switchgear (EC000001)
Feature Name Feature Value
Busbar thickness (EF007220) 3 mm
Busbar width (EF007219) 6 mm
Suitable for (EF000073) Flat rail
Width clamp (EF007092) 7 mm
Max. conductor cross section (EF004969) 6 mm²
Max. rated operation current Ie (EF007356) 41 A
Suitable for round conductor connection (EF007258) No
Suitable for sector conductor connection (EF007260) No
Suitable for strip conductor connection (EF007242) No
