View larger
Images are for illustrative purposes only. Please refer to data sheet for details

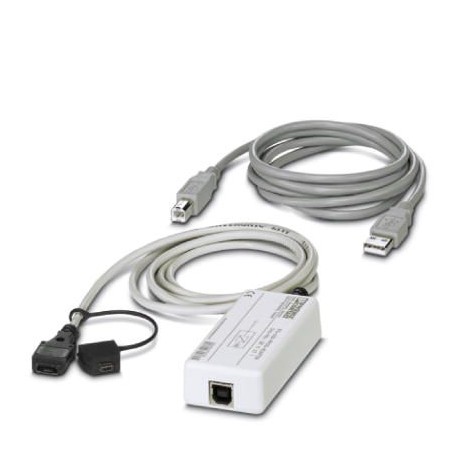

IFS-USB-PROG-ADAPTER 2811271 PHOENIX CONTACT Programming adapter
IFS-USB-PROG-ADAPTER
2811271
PHOENIX CONTACT
1 Pcs.
Programming adapter
Programming adapter with USB interface for software programming. The USB controller is included in the software solutions of the products to be programmed, e.g. metering converters or motor managers.
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2811271 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 105 (C-5-2017) |
| GTIN | 4046356178082 |
| Weight per Piece (excluding packing) | 147.400 g |
| Custom tariff number | 84719000 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General
| Connection 1 | PC side |
|---|---|
| Connection method | USB 2.0 Fullspeed |
| Connection 2 | Interface to measuring transducer |
| Connection method | S-PORT |
| UL, USA/Canada | UL 508 Listed |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
| UL, USA/Canada | UL 508 Listed |
| Class I, Div. 2, Groups A, B, C, D T6 | |
| Class I, Zone 2, Group IIC T6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127371392eCl@ss 5.027379201eCl@ss 5.127379100eCl@ss 6.027379200eCl@ss 7.027379201eCl@ss 8.027379201eCl@ss 9.027379201
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
