View larger
Images are for illustrative purposes only. Please refer to data sheet for details

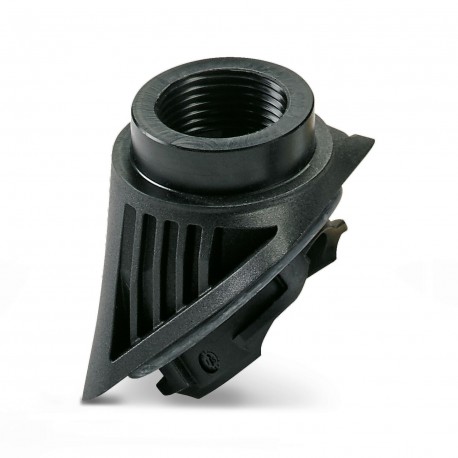

HC-B-TA-PG16-PLR-BK 1414248 PHOENIX CONTACT Adapter
HC-B-TA-PG16-PLR-BK
1414248
PHOENIX CONTACT
1 Pcs.
Adapter
Plastic thread adapter with bayonet lock, for EVO B housing series, Pg16 thread
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Thread adapter |
| Application | Bayonet B - Pg |
| Type of the screw connection | Pg16 |
| Data management status | |
| Article revision | 00 |
Connection data
| Tightening torque | ... 6 Nm |
Dimensions
| Dimensional drawing |  |
| Thread type on seal side | Pg16 |
| Internal dimensions | |
| Length of internal thread | 10 mm |
Material specifications
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material O-ring | NBR |
| Housing material | PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Pg16 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
Mounting
| Assembly note | Bayonet locking max. 3x can be removed |
| The plastic thread adapter does not establish an electrical connection between the cable gland and connector housing. For this reason, only plastic cable protection systems or plastic cable glands may be used. |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | None |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | Yes |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
