View larger
Images are for illustrative purposes only. Please refer to data sheet for details

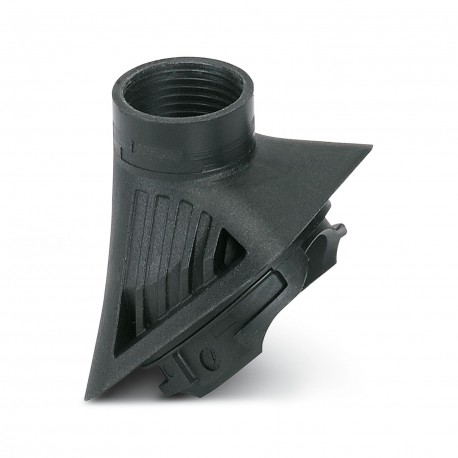

HC-B-TA-NPT-1/2-PLR-BK 1414251 PHOENIX CONTACT Adapter
HC-B-TA-NPT-1/2-PLR-BK
1414251
PHOENIX CONTACT
1 Pcs.
Adapter
Plastic thread adapter with bayonet lock, for EVO B housing series, NPT 1/2" thread
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1414251 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 659 (C-2-2017) |
| GTIN | 4055626022147 |
| Weight per Piece (excluding packing) | 21.600 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
General
| Material | PA |
|---|---|
| Housing material | PA |
| Sealing material | NBR (O-ring) |
| Flammability rating according to UL 94 | V0 |
| Thread type on seal side | 1/2-inch NPT |
| Thread type on connection side | Bayonet B plastic |
| Torque | 8 Nm (Tightening torque of screw connection to be screwed in) |
| Color | black |
| Assembly instructions | Bayonet locking max. 3x can be removed |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127440192eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027440209eCl@ss 8.027440209eCl@ss 9.027440192
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | None |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | Yes |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
