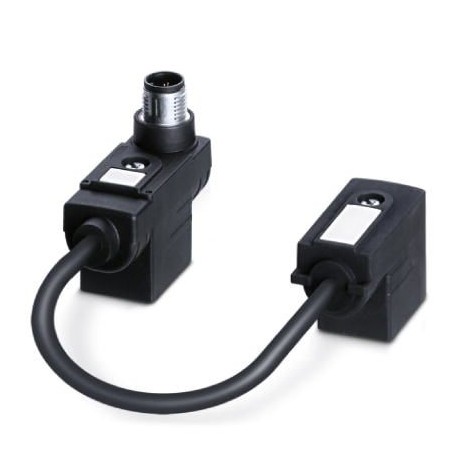

SAC-MS/0,15-116/2XBI-1L-Z SCO 1458473 PHOENIX CONTACT Double valve connector adapter

SAC-MS/0,15-116/2XBI-1L-Z SCO

1458473

PHOENIX CONTACT

1 Pcs.

Double valve connector adapter Double Valve Connector Adapter, Universal, 4-pole, Straight M12 Connector, coding: A SPEEDCON, to BI Valve Connectors (11mm), with 1 LED, connected with Z Diode and BI Valve Connectors (11mm), with 1 LED, connected with Z Diode, valve connector distance: 0.15 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1458473
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 265 (C-2-2017)
GTIN4046356638920
Weight per Piece (excluding packing)58.000 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Valve connector distance0.15 m
Central screw valve connectorM3 x 29

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage24 V AC
24 V DC
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Signal type/categorynpn
Status display1 LED
Protective circuit/componentZ diode
Pulse power Wmax40 W (at 100 µs square-wave pulse)
Terminal voltage70 V (at 2 mA constant current)
Reverse voltage50 V
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles50 (valve plug)
Torque0.6 Nm (valve plug)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Material, knurlsZinc die-cast, nickel-plated
Sealing materialTPU (Seal molded)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePUR/PVC, 0.75 mm², black
Cable type (abbreviation)116
Cable abbreviationLiYY11Y
UL AWM style20549
Conductor cross section3x 0.75 mm²
AWG signal line18
Conductor structure signal line24x 0.20 mm
Core diameter including insulation1.7 mm ±0.05 mm
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colorblack RAL 9005
External cable diameter D5.8 mm ±0.2 mm
Minimum bending radius, flexible installation10 x D
Number of bending cycles1000000
Traversing rate2 m/s
Acceleration2.5 m/s²
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 20 MΩ*km
Conductor resistance26 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable1200 V
Special propertiesflexible
Flame resistanceDIN VDE 0482
DIN EN 50265-2-1
in acc. with UL FT-2
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1458473 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.15 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) Yes
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated voltage (EF000228) 24 V
Degree of protection (IP) (EF005474) IP65
