View larger
Images are for illustrative purposes only. Please refer to data sheet for details

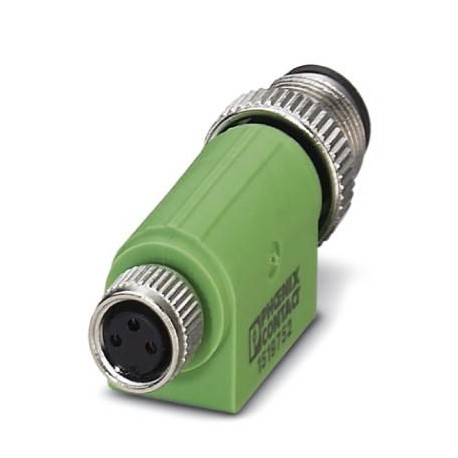

SAC-3P-M12MS-M 8FS 1519752 PHOENIX CONTACT Adapter
SAC-3P-M12MS-M 8FS
1519752
PHOENIX CONTACT
5 Pcs.
Adapter
Adapter, 3-pole, Straight connector M12, coding: A, a Straight female M8, coding: A
Automation > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1519752 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 260 (C-2-2017) |
| GTIN | 4046356019941 |
| Weight per Piece (excluding packing) | 11.650 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| M8 connector IEC 61076-2-104 | |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
| 0.2 Nm (M8 connectors) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Standard designation | M8 connector |
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027440104eCl@ss 8.027440104eCl@ss 9.027440106
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Single |
| Screened (EF000881) | No |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 90 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 48 V |
| Rated current In (EF008250) | 4 A |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
