View larger
Images are for illustrative purposes only. Please refer to data sheet for details

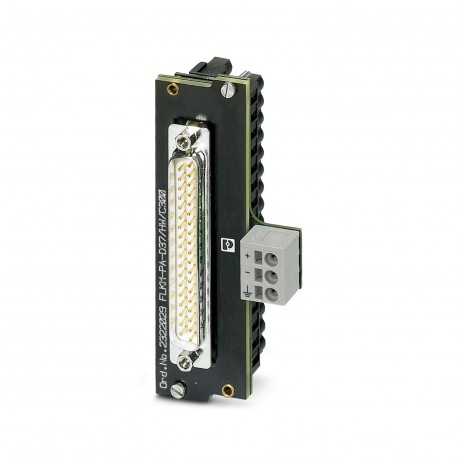

FLKM-PA-D37/HW/C300 2322029 PHOENIX CONTACT Front adapters
FLKM-PA-D37/HW/C300
2322029
PHOENIX CONTACT
1 Pcs.
Front adapters
VARIOFACE Front Adapter, for Honeywell C300, C I/O Series, 1 x 16 Channel Max Connection (37-Pin D-SUB Plug-in Connector)
Automation > Accessories/spare parts for controls
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2322029 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 220 (IF-2011) |
| GTIN | 4046356448253 |
| Weight per Piece (excluding packing) | 102.900 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 50 V DC | |
| Max. permissible current | 1 A (per path) |
| 4 A (per connection, supply via separate power supply) | |
| Mounting position | any |
| Degree of protection | IP00 |
Connection data 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Connection data 2
| Connection name | Supply |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Supported controller
| Controller | HONEYWELL Experion PKS C300/C-Series |
|---|---|
| - suitable I/O card | TDIL01 (non-redundant) |
| TDOB01 (non-redundant) |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027249290eCl@ss 5.127250300eCl@ss 6.027249200eCl@ss 7.027249290eCl@ss 8.027249290eCl@ss 9.027242292
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Adapter |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
