View larger
Images are for illustrative purposes only. Please refer to data sheet for details

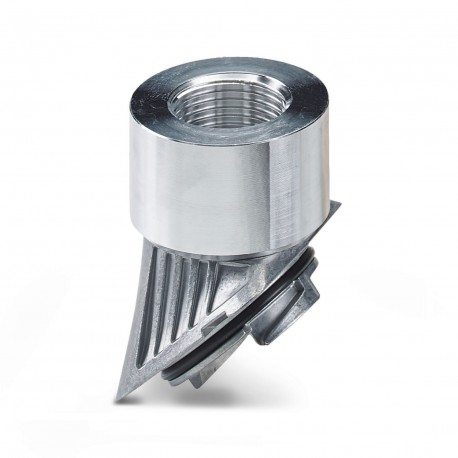

HC-B-TA-M25-ER-AL 1414257 PHOENIX CONTACT Adapter
HC-B-TA-M25-ER-AL
1414257
PHOENIX CONTACT
1 Pcs.
Adapter
Adapter, aluminum, for EVO housing, M25 thread
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Thread adapter |
| Application | Bayonet B - metric |
| Type of the screw connection | M25 |
| Data management status | |
| Article revision | 01 |
Connection data
| Tightening torque | ... 12 Nm |
Dimensions
| Dimensional drawing |  |
| Thread type on seal side | M25 |
| Internal dimensions | |
| Length of internal thread | 13 mm |
Material specifications
| Color | Aluminum color |
| Material | Die-cast aluminum, corrosion-resistant |
| Seal material O-ring | NBR |
| Housing material | Die-cast aluminum, corrosion resistant |
Cable/line
| External cable diameter | depending on the cable gland |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | M25 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | None |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Material (EF002169) | Metal |
| Material quality (EF001257) | Aluminium |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | Yes |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
