View larger
Images are for illustrative purposes only. Please refer to data sheet for details

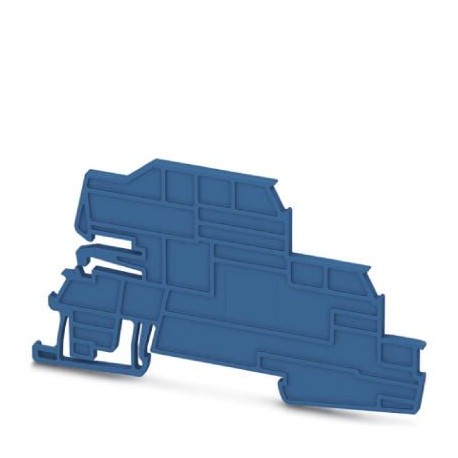

AB-UTI 6/3 1037092 PHOENIX CONTACT Support bracket
AB-UTI 6/3
1037092
PHOENIX CONTACT
50 Pcs.
Support bracket
Easel, Busbar holder, place every 20 cm, pitch: 200 mm, length: 97.4 mm, width: 2.2 mm, height: 51.2 mm, number of poles: 1, color: blue
Automation > Busbar support
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1037092 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4055626570617 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Dimensions
| Width | 2.2 mm |
|---|---|
| End cover width | 2.2 mm |
| Length | 97.4 mm |
| Height | 51.2 mm |
| Height NS 35/7,5 | 51.5 mm |
| Height NS 35/15 | 59 mm |
| Pitch | 200 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.023150301eCl@ss 4.123150301eCl@ss 5.027141143eCl@ss 5.127141143eCl@ss 6.027400600eCl@ss 7.027400607eCl@ss 8.027400607eCl@ss 9.027400607
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
