View larger
Images are for illustrative purposes only. Please refer to data sheet for details

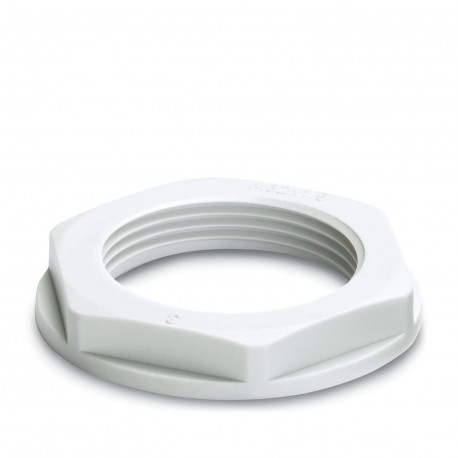

A-INL-PG36-P-LG 1424555 PHOENIX CONTACT Counter nut
A-INL-PG36-P-LG
1424555
PHOENIX CONTACT
5 Pcs.
Counter nut
Lock nut, material: PA 6 GF 30, connection thread: Pg36, color: light gray
Counter nut, connecting thread: Pg36, color: light gray
Cables > Cable entry sleeve
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Flat nut |
Dimensions
| Dimensional drawing |  |
| Length | 8 mm |
| Diameter | 47 mm |
| Connecting thread diameter | 47 mm |
| Wrench size, counter nut | 60 mm |
| Hexagon angular dimension | 66 mm |
| Thread type connection side | Pg36 |
Material specifications
| Material | PA 6.6 GF |
| Flammability rating according to UL 94 | V2 |
Cable/line
| Halogen-free | yes |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | Other |
| Operating temperature (EF001742) | -40 °C |
