> PHOENIX CONTACT > Industrial plug-in connectors/interfaces > 1424551

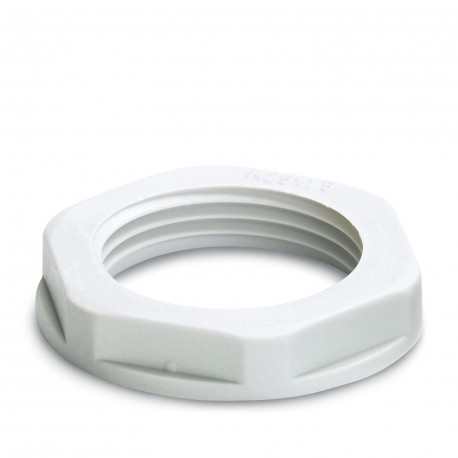

PHOENIX CONTACT A-INL-PG13,5-P-LG A-INL-PG13,5-P-LG 1424551 PHOENIX CONTACT Counter nut View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A-INL-PG13,5-P-LG 1424551 PHOENIX CONTACT Counter nut

A-INL-PG13,5-P-LG

1424551

PHOENIX CONTACT

5 Pcs.

Counter nut Lock nut, material: PA 6 GF 30, connection thread: Pg13.5, color: light gray Counter nut, connecting thread: Pg13.5, color: light gray

Cables > Cable entry sleeve
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFlat nut
Dimensions
Dimensional drawingkopkkqvmzu.jpg
Length6 mm
Diameter20.4 mm
Connecting thread diameter20.4 mm
Wrench size, counter nut27 mm
Hexagon angular dimension29 mm
Thread type connection sidePg13.5
Material specifications
MaterialPA 6.6 GF
Flammability rating according to UL 94V2
Cable/line
Halogen-freeyes
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C

ETIM for 1424551 Cable glands and cable entry products (EC000879)
Feature Name Feature Value
Material (EF002169) Plastic
Material quality (EF001257) Polyamide (PA)
Surface protection (EF000139) Untreated
Halogen free (EF000025) Yes
Colour (EF000007) Grey
Degree of protection (IP) (EF005474) Other
Operating temperature (EF001742) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
