> PHOENIX CONTACT > Industrial Relays > 2900395

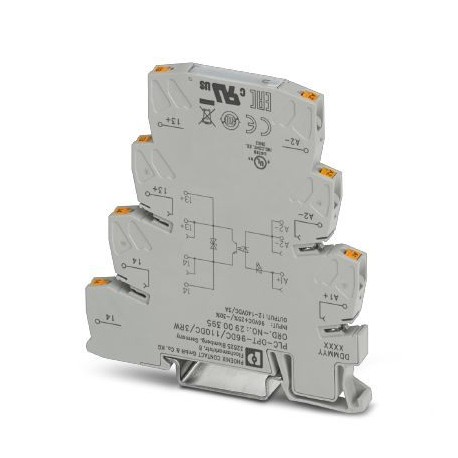

PHOENIX CONTACT PLC-OPT-96DC/110DC/3RW PLC-OPT- 96DC/110DC/3RW 2900395 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-OPT- 96DC/110DC/3RW 2900395 PHOENIX CONTACT Solid-state relay module

PLC-OPT-96DC/110DC/3RW

2900395

PHOENIX CONTACT

1 Pcs.

Solid-state relay module PLC-INTERFACE for railway applications, consisting of base terminal block with push-in connection and integrated miniature solid-state relay, range: 0.7 x UN to 1.25 x UN, temperature range: -25 °C to +70 °C, 1 closing contact, input: 96 V DC, output: 12-140 V DC/3 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2900395
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 415 (C-5-2017)
GTIN4046356506946
Weight per Piece (excluding packing)36.000 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Degree of protectionIP20

Input data

Nominal input voltage UN96 V DC
Input voltage range in reference to UN0.7 ... 1.25 (t < 1 s = 0.6 ... 1.4 x UN)
Input voltage range67.2 V DC ... 120 V DC
Switching threshold "0" signal in reference to UN< 0.3
Switching threshold "1" signal in reference to UN> 0.6
Typical input current at UN5.5 mA
Typical response time40 µs
Typical turn-off time200 µs
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentSeries polarity protection diode
Surge voltage protection> 150 V
Transmission frequency300 Hz
Power dissipation for nominal condition0.53 W

Output data

Output nominal voltage110 V DC
Output voltage range12 V DC ... 140 V DC (t < 1 s = 1.40 x UN)
Limiting continuous current3 A (see derating curve)
Surge voltage protection> 150 V
Voltage drop at max. limiting continuous current< 150 mV
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentParallel polarity protection diode

Connection data 1

Connection nameInput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameOutput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 14

General

Test voltage input/output2.5 kVrms
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V0
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage160 V DC
Rated surge voltage4 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2900395 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 67.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 12 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 3 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
