View larger
Images are for illustrative purposes only. Please refer to data sheet for details

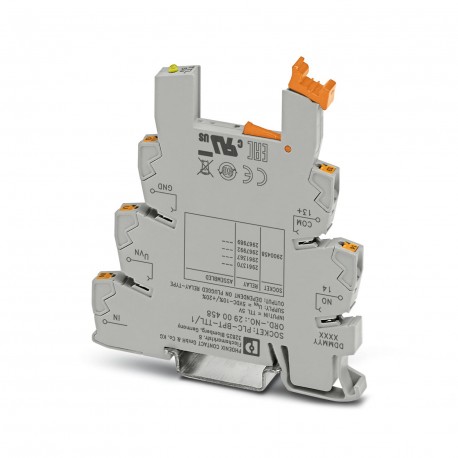

PLC-BPT-TTL/1 2900458 PHOENIX CONTACT Relay base
PLC-BPT-TTL/1
2900458
PHOENIX CONTACT
1 Pcs.
Relay base
6.2 mm PLC base terminal block for TTL signal with push-in connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, 1 closing contact, TTL input voltage (5 V DC)
Automation > Relay socket
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2900458 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 412 (C-5-2017) |
| GTIN | 4046356507783 |
| Weight per Piece (excluding packing) | 27.190 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Input data
| Rated control circuit supply voltage US | 5 V DC |
|---|---|
| Voltage range with reference to US | 0.9 ... 1.2 |
| Rated control supply current IS | 41 mA |
| Rated actuating voltage UC | 5 V DC (TTL) |
| Voltage range with reference to UC | 0.9 ... 1.2 |
| Rated actuating current IC | 2.5 mA |
| Rated actuating voltage UC | 5 V DC (TTL) |
| Rated actuating current IC | 2.5 mA |
| Rated control circuit supply voltage US | 5 V DC |
| Voltage range with reference to US | 0.9 ... 1.2 |
| Rated control supply current IS | 11.5 mA |
| Switching level 1 signal ("H") (TTL signal) | > 2 V DC |
| Switching level 0 signal ("L") (TTL signal) | < 0.8 V DC |
| Nominal input voltage UN | 5 V DC (TTL) |
| Surge voltage protection | > 6.5 V |
| Transmission frequency | 1000 Hz |
| Surge voltage protection | > 6.5 V |
Connection data 1
| Connection name | Input side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² () | |
| 2x 0.5 mm² ... 1 mm² () | |
| Conductor cross section AWG | 26 ... 14 |
Connection data 2
| Connection name | Output side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² () | |
| 2x 0.5 mm² ... 1 mm² () | |
| Conductor cross section AWG | 26 ... 14 |
General
| Color | gray |
|---|---|
| Operating mode | 100% operating factor |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371603eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | No |
| Number of pins (EF005580) | 5 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 94 mm |
