View larger
Images are for illustrative purposes only. Please refer to data sheet for details

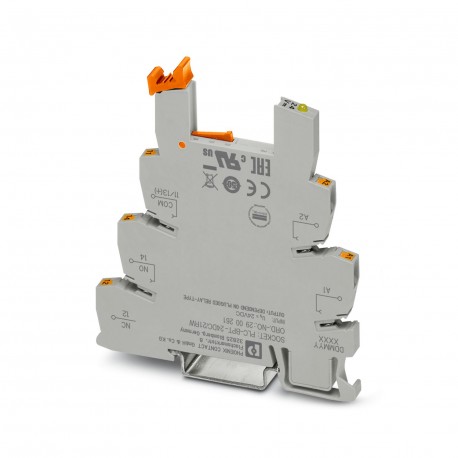

PLC-BPT- 24DC/21RW 2900261 PHOENIX CONTACT Relay base
PLC-BPT-24DC/21RW
2900261
PHOENIX CONTACT
10 Pcs.
Relay base
6.2 mm PLC base terminal block for railway applications with push-in connection, without relay or solid-state relay equipment, range from 0.7 x UN to 1.25 x UN, temperature range from -25 °C to +70 °C, 1 switched contact, input voltage 24 V DC
Automation > Relay socket
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product type | Relay socket |
| Product family | PLC-INTERFACE |
| Application | Railway applications |
| Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21 |
| Data management status | |
| Article revision | 05 |
Electrical properties
| Protective circuit | Damping diode, polarity protection diode |
Input data
| Nominal input voltage UN | 24 V DC |
| The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | |
| Protective circuit | Freewheeling diode |
| Nominal input voltage UN | 24 V DC |
| The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | |
| Relay assembly | |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.65 ... 1.25 |
| Typical input current at UN | 12 mA |
| Typical response time | 5 ms |
| Typical release time | 8 ms |
| Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Freewheeling diode; Freewheeling diode | |
Output data
| Compatible components | Miniature relay, REL-MR-18DC/21AU, REL-MR-18DC/21 |
Connection data
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² (Single ferrule) | |
| 2x 0.5 mm² ... 1 mm² (TWIN ferrule) | |
| Conductor cross section AWG | 26 ... 14 |
Signaling
| Status display | LED |
Dimensions
| Width | 6.2 mm |
| Height | 80 mm |
| Depth | 94 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Approvals
| CE | |
| Certificate | CE-compliant |
| UKCA | |
| Certificate | UKCA-compliant |
| Shipbuilding approval | |
| Certificate | TAE0000196 |
| Corrosive gas test | |
| Identification | ISA-S71.04. G3 Harsh Group |
| EN 60068-2-60 | |
| DNV GL data | |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
EMC data
| Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive |
Mounting
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | No |
| Number of pins (EF005580) | 5 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 94 mm |
