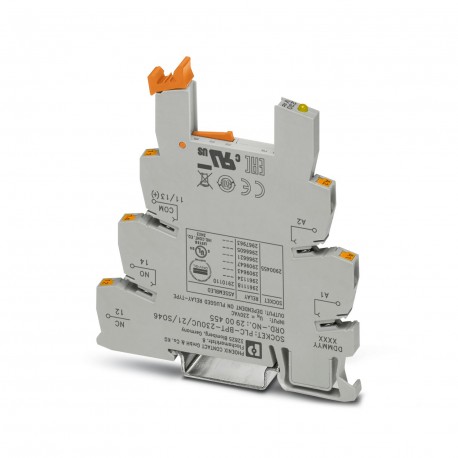

PLC-BPT-230UC/21/SO46 2900455 PHOENIX CONTACT Relay base

PLC-BPT-230UC/21/SO46

2900455

PHOENIX CONTACT

1 Pcs.

Relay base 6.2 mm PLC base terminal block against eddy currents or eddy voltages on the control side with push-in connection, without relay or solid-state relay equipment, for DIN rail mounting NS 35/7.5, with integrated RCZ filter, 1 switch, input voltage 230 V AC 6.2 mm PLC basic terminal block against interference currents/voltages on the control side with Push-in connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, with integrated RCZ filter, 1 changeover contact, input voltage 230 V AC

Automation > Relay socket
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRelay socket
Product familyPLC-INTERFACE
ApplicationFilter to prevent interference
Operating mode100% operating factor
Compatible componentsMiniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1
Data management status
Article revision07
Electrical properties
Protective circuitBridge rectifier; Bridge rectifier
RCZ filter; RCZ filter
Input data
Nominal input voltage UN230 V AC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
230 V AC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Relay assembly
Nominal input voltage UN230 V AC
Input voltage range in reference to UN0.78 ... 1.14
Typical input current at UN8.8 mA (50 Hz)
10 mA (60 Hz)
Typical response time7 ms
Typical release time20 ms
Typical release voltage80 V AC
Operating voltage displayYellow LED
Protective circuitBridge rectifier; Bridge rectifier
Filter; Filter
Optocoupler assembly
Nominal input voltage UN230 V AC
Input voltage range in reference to UN0.8 ... 1.1
Typical input current at UN8.8 mA (50 Hz)
10 mA (60 Hz)
Switching threshold "0" signal in reference to UN≤ 0.4
Typical response time6 ms
Typical release time10 ms
Operating voltage displayYellow LED
Protective circuitBridge rectifier; Bridge rectifier
Filter; Filter
Output data
Compatible componentsMiniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21; miniature optocoupler, OPT-60DC/48DC/100, OPT-60DC/24DC/2, OPT-60DC/230AC/1
Maximum switching voltage48 V DC
Minimum switching voltage3 V DC
Limiting continuous current100 mA
Voltage drop at max. limiting continuous current< 1 V DC
Output circuit2-conductor, floating
Protective circuitReverse polarity protection
Surge protection
Maximum switching voltage30 V DC
Minimum switching voltage3 V DC
Limiting continuous current3 A
Voltage drop at max. limiting continuous current< 200 mV
Maximum inrush current15 A (10 ms)
Output circuit2-conductor, floating
Protective circuitReverse polarity protection
Surge protection
Maximum switching voltage253 V AC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage24 V AC
Limiting continuous current0.75 A
Voltage drop at max. limiting continuous current< 1 V AC
Maximum inrush current30 A (10 ms)
Output circuit2-conductor, floating
Protective circuitRCV circuit
Leakage current< 1 mA
Phase angle cos phi min0.5
Max. load value4.5 A2s
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Signaling
Status displayLED
Dimensions
Width6.2 mm
Height80 mm
Depth94 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 55 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2900455 Relays (EC001456)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Mounting method (EF000003) Other
With detachable clamps (EF003340) No
Function extension possible (EF003444) No
Number of pins (EF005580) 5
Width (EF000008) 6.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm
