View larger
Images are for illustrative purposes only. Please refer to data sheet for details

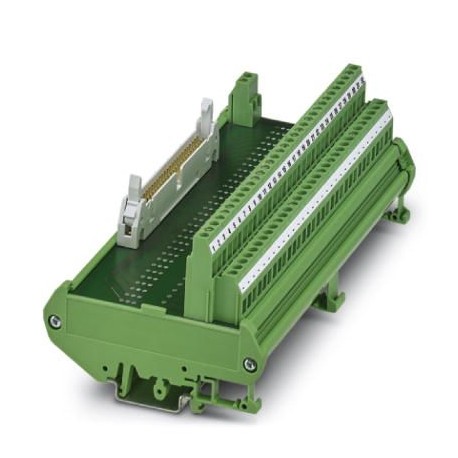

FLKM 50/32M/DV 2304869 PHOENIX CONTACT Passive module
FLKM 50/32M/DV
2304869
PHOENIX CONTACT
1 Pcs.
Passive module
32-channel module without LED and 2-conductor connection; Common negative potential (for Delta V control cards)
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2304869 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 482 (C-5-2017) |
| GTIN | 4017918981716 |
| Weight per Piece (excluding packing) | 284.420 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. perm. current (per branch) | 1 A |
| Max. permissible current (separate power supply) | 5 A (KL/KL) |
| Number of positions | 50 |
| Status display | No |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| IEC 60664 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 50 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 65.8 mm |
| Width (EF000008) | 168.3 mm |
| Height (EF000040) | 89.6 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
