> PHOENIX CONTACT > Industrial Relays > 2980432

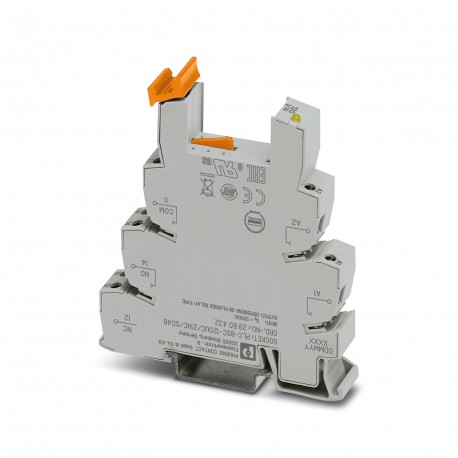

PHOENIX CONTACT PLC-BSC-120UC/21HC/SO46 PLC-BSC-120UC/21HC/SO46 2980432 PHOENIX CONTACT Relay base View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-BSC-120UC/21HC/SO46 2980432 PHOENIX CONTACT Relay base

PLC-BSC-120UC/21HC/SO46

2980432

PHOENIX CONTACT

1 Pcs.

Relay base 14 mm PLC base terminal block against eddy currents or eddy voltages on the control side with screw connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, for high constant currents, 1 switched contact, input voltage 120 V AC 14 mm PLC base terminal, against interfering currents and/or voltages on the control side with screw connection, without equipment. relay or solid-state relay, for mounting rail mounting, NS 35/7.5, for high permanent currents, 1 changeover contact tens. Input: 120 V DC

Automation > Relay socket
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2980432
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 389 (C-5-2017)
GTIN4017918921224
Weight per Piece (excluding packing)58.880 g
Custom tariff number85366990
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 55 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Input voltage range in reference to UN0.85 ... 1.4
Typical release voltage16 V AC
Nominal input voltage UN120 V AC
Input voltage range in reference to UN0.85 ... 1.14 (at 20 °C)
Release voltagetyp. 16 V AC
Typical input current at UN8.5 mA
Typical response time7 ms
Typical release time10 ms
Status displayLED
Protective circuitBridge rectifier Bridge rectifier
RCZ filter RCZ filter

Output data

Compatible componentsMiniature relay, REL-MR-110DC/21HC

Connection data 1

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

General

Protective circuitBridge rectifier Bridge rectifier
RCZ filter RCZ filter
Colorgray
Operating mode100% operating factor
Mounting positionany
Assembly instructionsIn rows with zero spacing

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2980432 Relays (EC001456)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Mounting method (EF000003) Other
With detachable clamps (EF003340) No
Function extension possible (EF003444) No
Number of pins (EF005580) 8
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm
