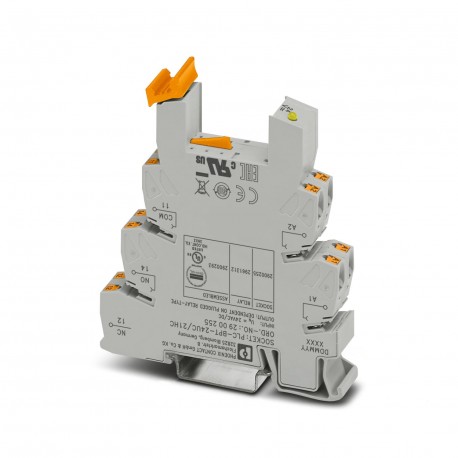

PHOENIX CONTACT PLC-BPT-24UC/21HC PLC-BPT- 24UC/21HC 2900255 PHOENIX CONTACT Relay base View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PLC-BPT- 24UC/21HC 2900255 PHOENIX CONTACT Relay base

PLC-BPT-24UC/21HC

2900255

PHOENIX CONTACT

10 Pcs.

Relay base 14 mm PLC base terminal block for high constant currents with push-in connection, without relay or solid-state relay equipment, for mounting on NS 35/7.5 rail, 1 switched contact, input voltage 24 V AC/DC 14 mm PLC basic terminal block for high continuous currents with Push-in connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage 24 V AC/DC

Automation > Relay socket
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRelay socket
Product familyPLC-INTERFACE
ApplicationHigh continuous currents
Operating mode100% operating factor
Data management status
Article revision08
Electrical properties
Protective circuitBridge rectifier
Input data
Nominal input voltage UN24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Protective circuitBridge rectifier
Nominal input voltage UN24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Signaling
Status displayLED
Dimensions
Width14 mm
Height80 mm
Depth94 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2900255 Relays (EC001456)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Mounting method (EF000003) Other
With detachable clamps (EF003340) No
Function extension possible (EF003444) No
Number of pins (EF005580) 8
Width (EF000008) 14 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
