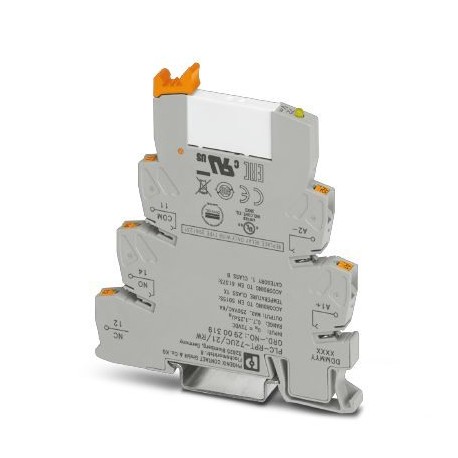

PLC-RPT- 72UC/21/RW 2900319 PHOENIX CONTACT Relay Module

PLC-RPT-72UC/21/RW

2900319

PHOENIX CONTACT

1 Pcs.

Relay Module PLC-INTERFACE for railway applications, consisting of base terminal block with push-in connection and plug-in miniature relay with power contact, range: 0.7 x UN to 1.25 x UN, TX temperature class: -40 °C to +70 °C, 1 switched contact, input voltage 72 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2900319
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 418 (C-5-2017)
GTIN4046356507417
Weight per Piece (excluding packing)33.370 g
Custom tariff number85364900
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height80 mm
Depth94 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C (Temperature class TX)
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN72 V DC
Typical input current at UN3 mA
Typical response time4 ms
Typical release time4 ms
Coil voltage48 V DC
Protective circuitBridge rectifier Bridge rectifier
Free-wheeling diode Damping diode
Surge protection
RCZ filter
Wide-range electronics
Operating voltage displayYellow LED
Power dissipation for nominal condition0.22 W

Contact side

Contact type1 PDT
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.)
Minimum switching voltage5 V (at 100 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current10 A (4 s)
Limiting continuous current6 A
Interrupting rating (ohmic load) max.140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity1 A (24 V (DC13))
0.2 A (110 V (DC13))
0.1 A (220 V (DC13))
3 A (24 V (AC15))
3 A (120 V (AC15))
3 A (230 V (AC 15))

Connection data 1

Connection nameCoil side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1 mm² ()
Conductor cross section AWG26 ... 14

Connection data 2

Connection nameContact side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1 mm² ()
Conductor cross section AWG26 ... 14

General

Test voltage relay winding/relay contact4 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT III (Relay)
IP20 (Relay base)
Mechanical service lifeapprox. 2x 107cycles
Mounting positionany
Assembly instructionsIn rows with zero spacing
Net weight (SAP)33.37 g

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsEN 50155 (VDE 0115 part 200)
EN 50178
EN 61373
EN 50121
Rated insulation voltage250 V AC
Rated surge voltage6 kV
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2900319 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage DC (EF003980) 50.4 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.003 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 6.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 94 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
