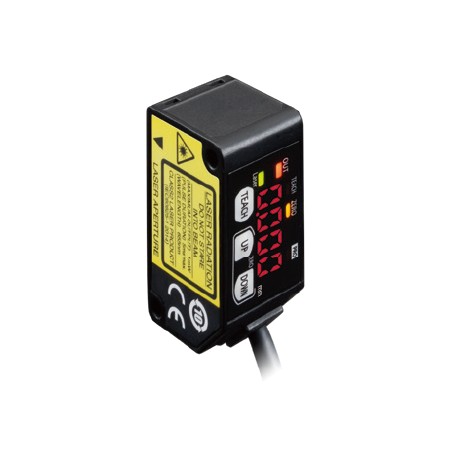

UHGC1400L3P HG-C1400L3-P PANASONIC Compact Laser Displacement Sensor, 400mm+/-200mm, IO Link, cable 2m
UHGC1400L3P
UHGC1400L3P
PANASONIC
1 unit
Automation > Laser Sensors - Spot Type - AN - PANASONIC
Laser Sensors - Spot Type - AN - PANASONIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Panasonic UHGC1400L3P HG-C1400L3-P PANASONIC Compact Laser Displacement Sensor, 400mm+/-200mm, IO Link, cable 2m is an advanced optoelectronic device used to measure target distances and profile changes without physical contact. Engineers frequently integrate these micro distance sensors into automated machinery for rigorous dimensional inspection, parts profiling, and closed-loop motion control applications. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Product Number: HG-C1400L3-P
- Part Number: HG-C1400L3-P
- Product: CMOS Type Micro Laser Distance Sensor
- Details: Discrete wire type
- Product name: CMOS type Micro Laser Distance Sensor HG-C1000L
- Measurement center distance: 400 mm 15.748 in
- Measuring range: ±200 mm 7.874 in
- Temprerature characteristics: 0.03%F.S./℃
- Beam diameter: ø500 μm 19.685 mil approx.
- Supply voltage: 24 V DC ±10 % Ripple P-P 10 %
- Current consumption: 40 mA or less (at 24 V DC supply voltage)
- Communication output (C/Q) : IO-Link communication: IO-Link Specification V1.1
- Communication output (C/Q) : Baud rate: COM3 (230.4 kbps)
- Communication output (C/Q) : Process data: 4 byte
More info
▲| Product Number | HG-C1400L3-P |
| Part Number | HG-C1400L3-P |
| Product | CMOS Type Micro Laser Distance Sensor |
| Details | Discrete wire type |
| Product name | CMOS type Micro Laser Distance Sensor HG-C1000L |
| Item | Specifications |
|---|---|
| Product Number | HG-C1400L3-P |
| Part Number | HG-C1400L3-P |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification |
| Measurement center distance | 400 mm 15.748 in |
| Measuring range | ±200 mm 7.874 in |
| Repeatability | 300 μm 11.811 mil (Measuring distance 200 to 400 mm 7.874 to 15.748 in) 800 μm 31.496 mil (Measuring distance 400 to 600 mm 15.748 to 23.622 in) |
| Linearity | ±0.2 % F.S. (Measuring distance 200 to 400 mm 7.874 to 15.748 in) ±0.3 % F.S. (Measuring distance 400 to 600 mm 15.748 to 23.622 in) |
| Temprerature characteristics | 0.03%F.S./℃ |
| Light source | Red semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note)] Max. output: 1 mW, emission peak wavelength: 655 nm 0.026 mil (Note:)This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Beam diameter | ø500 μm 19.685 mil approx. |
| Supply voltage | 24 V DC ±10 % Ripple P-P 10 % |
| Current consumption | 40 mA or less (at 24 V DC supply voltage) |
| Communication output (C/Q) : IO-Link communication | IO-Link Specification V1.1 |
| Communication output (C/Q) : Baud rate | COM3 (230.4 kbps) |
| Communication output (C/Q) : Process data | 4 byte |
| Communication output (C/Q) : Minimum cycle time | 1.0 ms |
| Control output | PNP open-collector transistor • Maximum source current: 50 mA • Applied voltage: 30 V DC or less (Between control output to +V) • Residual voltage: 1.5 V or less (at 50 mA source current) • Leakage current: 0.1 mA or less |
| Control output:Output operation | Switchable between either Light-ON or Dark-ON |
| Control output:Short-circuit protection | Incorporated (auto reset type) |
| Response time | Switchable between 1.5 ms / 5 ms / 10 ms |
| Pollution degree | 2 |
| Operating altitude | 2,000 m 6561.680 ft or less |
| Protection | IP67(IEC) |
| Ambient temperature | -10 to +45℃ -14 to 113℉ (No dew condensation or icing allowed), Storage: -20 to +60℃ -4 to 140℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Cable | Discrete wire type: 0.2 mm2 4-core PVC cable, 2 m 6.562 ft long M12 connector type: 0.2 mm2 4-core PVC cable with connector, 0.3 m 0.984 ft long |
| Cable extension | Extension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable. |
| Material | Enclosure: Aluminum die-cast, Front cover: Acrylic |
| Weight | 30 g approx. (without cable), 80 g approx. (including cable) |
| Remark | (Note):Supply voltage: 24 V DC, ambient temperature: +20℃ +68℉, response time: 10 ms, and analog output value of measurement center distance are used for unspecified measurement conditions. The subject is white ceramics. |
