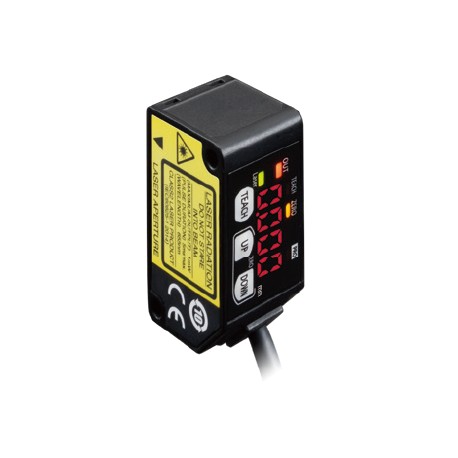

UHGC1400L3PJ HG-C1400L3-P-J PANASONIC Compact Laser Displacement Sensor, 400mm+/-200mm, IO Link, 1M12 Pigtai..
UHGC1400L3PJ
UHGC1400L3PJ
PANASONIC
1 unit
Automation > Laser Sensors - Spot Type - AN - PANASONIC
Laser Sensors - Spot Type - AN - PANASONIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Number | HG-C1400L3-P-J |
| Part Number | HG-C1400L3-P-J |
| Product | CMOS Type Micro Laser Distance Sensor |
| Details | M12 connector type |
| Product name | CMOS type Micro Laser Distance Sensor HG-C1000L |
| Item | Specifications |
|---|---|
| Product Number | HG-C1400L3-P-J |
| Part Number | HG-C1400L3-P-J |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification |
| Measurement center distance | 400 mm 15.748 in |
| Measuring range | ±200 mm 7.874 in |
| Repeatability | 300 μm 11.811 mil (Measuring distance 200 to 400 mm 7.874 to 15.748 in) 800 μm 31.496 mil (Measuring distance 400 to 600 mm 15.748 to 23.622 in) |
| Linearity | ±0.2 % F.S. (Measuring distance 200 to 400 mm 7.874 to 15.748 in) ±0.3 % F.S. (Measuring distance 400 to 600 mm 15.748 to 23.622 in) |
| Temprerature characteristics | 0.03%F.S./℃ |
| Light source | Red semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note)] Max. output: 1 mW, emission peak wavelength: 655 nm 0.026 mil (Note:)This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3. |
| Beam diameter | ø500 μm 19.685 mil approx. |
| Supply voltage | 24 V DC ±10 % Ripple P-P 10 % |
| Current consumption | 40 mA or less (at 24 V DC supply voltage) |
| Communication output (C/Q) : IO-Link communication | IO-Link Specification V1.1 |
| Communication output (C/Q) : Baud rate | COM3 (230.4 kbps) |
| Communication output (C/Q) : Process data | 4 byte |
| Communication output (C/Q) : Minimum cycle time | 1.0 ms |
| Control output | PNP open-collector transistor • Maximum source current: 50 mA • Applied voltage: 30 V DC or less (Between control output to +V) • Residual voltage: 1.5 V or less (at 50 mA source current) • Leakage current: 0.1 mA or less |
| Control output:Output operation | Switchable between either Light-ON or Dark-ON |
| Control output:Short-circuit protection | Incorporated (auto reset type) |
| Response time | Switchable between 1.5 ms / 5 ms / 10 ms |
| Pollution degree | 2 |
| Operating altitude | 2,000 m 6561.680 ft or less |
| Protection | IP67(IEC) |
| Ambient temperature | -10 to +45℃ -14 to 113℉ (No dew condensation or icing allowed), Storage: -20 to +60℃ -4 to 140℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Cable | Discrete wire type: 0.2 mm2 4-core PVC cable, 2 m 6.562 ft long M12 connector type: 0.2 mm2 4-core PVC cable with connector, 0.3 m 0.984 ft long |
| Cable extension | Extension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable. |
| Material | Enclosure: Aluminum die-cast, Front cover: Acrylic |
| Weight | 30 g approx. (without cable), 50 g approx. (including cable) |
| Remark | (Note):Supply voltage: 24 V DC, ambient temperature: +20℃ +68℉, response time: 10 ms, and analog output value of measurement center distance are used for unspecified measurement conditions. The subject is white ceramics. |
