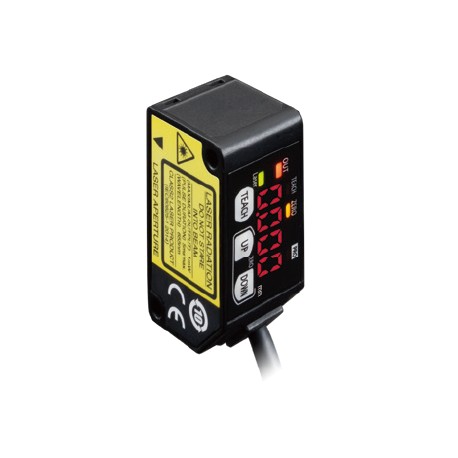

PANASONIC UHGC1100L3PJ UHGC1100L3PJ HG-C1100L3-P-J PANASONIC Compact Laser Displacement Sensor, 100mm+-35mm, IO Link, M12 Pigtail 0.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UHGC1100L3PJ HG-C1100L3-P-J PANASONIC Compact Laser Displacement Sensor, 100mm+-35mm, IO Link, M12 Pigtail 0..

UHGC1100L3PJ

UHGC1100L3PJ

PANASONIC

1 unit


Automation > Laser Sensors - Spot Type - AN - PANASONIC
Laser Sensors - Spot Type - AN - PANASONIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product NumberHG-C1100L3-P-J
Part NumberHG-C1100L3-P-J
ProductCMOS Type Micro Laser Distance Sensor
DetailsM12 connector type
Product nameCMOS type Micro Laser Distance Sensor HG-C1000L

ItemSpecifications
Product NumberHG-C1100L3-P-J
Part NumberHG-C1100L3-P-J
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification
Measurement center distance100 mm 3.937 in
Measuring range±35 mm 1.328 in
Repeatability70 μm 2.756 mil
Linearity±0.1 % F.S.
Temprerature characteristics0.03%F.S./℃
Light sourceRed semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note)] Max. output: 1 mW, emission peak wavelength: 655 nm 0.026 mil
(Note:)This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Beam diameterø120 μm 4.724 mil approx.
Supply voltage24 V DC ±10 % Ripple P-P 10 %
Current consumption40 mA or less (at 24 V DC supply voltage)
Communication output (C/Q) : IO-Link communicationIO-Link Specification V1.1
Communication output (C/Q) : Baud rateCOM3 (230.4 kbps)
Communication output (C/Q) : Process data4 byte
Communication output (C/Q) : Minimum cycle time1.0 ms
Control outputPNP open-collector transistor
• Maximum source current: 50 mA
• Applied voltage: 30 V DC or less (Between control output to +V)
• Residual voltage: 1.5 V or less (at 50 mA source current)
• Leakage current: 0.1 mA or less
Control output:Output operationSwitchable between either Light-ON or Dark-ON
Control output:Short-circuit protectionIncorporated (auto reset type)
Response timeSwitchable between 1.5 ms / 5 ms / 10 ms
Pollution degree2
Operating altitude2,000 m 6561.680 ft or less
ProtectionIP67(IEC)
Ambient temperature-10 to +45℃ -14 to 113℉ (No dew condensation or icing allowed), Storage: -20 to +60℃ -4 to 140℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
CableDiscrete wire type: 0.2 mm2 4-core PVC cable, 2 m 6.562 ft long
M12 connector type: 0.2 mm2 4-core PVC cable with connector, 0.3 m 0.984 ft long
Cable extensionExtension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable.
MaterialEnclosure: Aluminum die-cast, Front cover: Acrylic
Weight30 g approx. (without cable), 50 g approx. (including cable)
Remark(Note):Supply voltage: 24 V DC, ambient temperature: +20℃ +68℉, response time: 10 ms, and analog output value of measurement center distance are used for unspecified measurement conditions. The subject is white ceramics.
