Product Overview

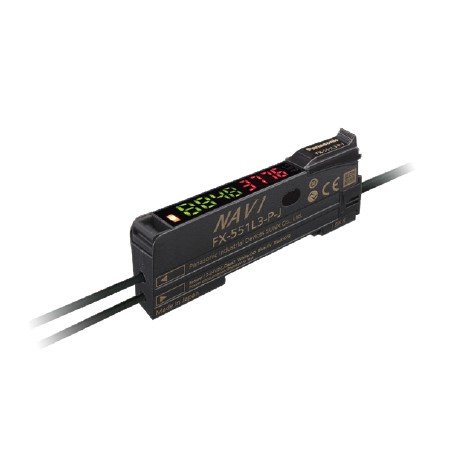

Fiber amplifier, IO Link, double display, cable type, 2m manufactured by Panasonic under part number UFX551L3PC2 evaluates light intensity variations from fiber sensor heads for precise presence detection, sorting, and positioning tasks. Digital fiber amplifiers provide operators with clear numeric readouts and flexible programming options for integration into modern industrial automation networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Number: FX-551L3-P-C2
  • Part Number: FX-551L3-P-C2
  • Product name: Digital Fiber Sensor FX-550L
  • Supply voltage: 12 to 24 V DC +10 -15 % Ripple P-P 10 % or less
  • Control output (DO):Output operation: Switchable either Light-ON or Dark-ON by L/D mode
  • Control output (DO):Short-circuit protection: Incorporated
  • Sensitivity setting: 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment
  • Incident light sensitivity setting: Incorporated, 4 steps
  • Incident light intensity display range: STD: 0 to 4,000, LONG: 0 to 8,000, U-LG / HYPR: 0 to 9,999
  • Timer function:Timer period: 0.1 to 999.9 ms approx., in units of 0.1 ms approx.
  • Protection: IP40 (IEC)
  • Shock resistance: 98 m/s 2 acceleration (10 G approx.) in X, Y and Z directions five times each
  • Emitting element (modulated): Red LED (Peak emission wavelength: 660 nm 0.026 mil)
  • Material: Enclosure, Case cover: Polycarbonate, Switch: Polyacetal

More info

▲
Product NumberFX-551L3-P-C2
Part NumberFX-551L3-P-C2
Product nameDigital Fiber Sensor FX-550L

ItemSpecifications
Product NumberFX-551L3-P-C2
Part NumberFX-551L3-P-C2
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Supply voltage12 to 24 V DC +10-15% Ripple P-P 10 % or less
Power consumptionNormal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)
ECO mode: 720 mW or less (current consumption 30 mA or less at 24 V supply voltage)
Communication output (C/Q):IO-Link communicationIO-Link Specification V1.1
(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO).
Communication output (C/Q):Baud rateCOM3 (230.4 kbps)
(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO).
Communication output (C/Q):Process data4 byte
(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO).
Communication output (C/Q):Minimum cycle time1.0 ms
(Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO).
Control output (DO)PNP open-collector transistor
• Maximum source current: 50 mA
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage: 2 V or less (Note) (at maximum source current)
(Note:)In case of using the cable (cable length 2 m 6.562 ft).
Control output (DO):Output operationSwitchable either Light-ON or Dark-ON by L/D mode
Control output (DO):Short-circuit protectionIncorporated
Response timeSTD: 250 μs or less, LONG: 2 ms or less, U-LG: 4 ms or less, HYPR: 24 ms or less, selectable
Sensitivity setting2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment
Incident light sensitivity settingIncorporated, 4 steps
Incident light intensity display rangeSTD: 0 to 4,000, LONG: 0 to 8,000, U-LG / HYPR: 0 to 9,999
Timer functionIncorporated with variable OFF-delay / ON-delay / One-shot, switchable either effective or ineffective
Timer function:Timer period0.1 to 999.9 ms approx., in units of 0.1 ms approx.
Different frequency interference prevention functionIncorporated (up to 4 units). Note that the response time varies depending on the setting.
F-1: 0.8 ms or less, F-2: 0.9 ms or less, F-3: 1.0 ms or less, F-4: 1.7 ms or less
(Note:)This function increases the hysteresis. Check the sensing condition when using the function.
ProtectionIP40 (IEC)
Ambient temperature-10 to +55℃ +14 to +131℉ (If 4 to 7 units are mounted in cascade: -10 to +50℃ +14 to +122℉ or if 8 to 16 units are mounted in cascade: -10 to +45℃ +14 to +113℉) (No dew condensation or icing allowed), Storage: -20 to +70℃ -4 to +158℉
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting element (modulated)Red LED (Peak emission wavelength: 660 nm 0.026 mil)
MaterialEnclosure, Case cover: Polycarbonate, Switch: Polyacetal
Cable0.2 mm2 4-core cabtyre cable, 2 m 6.562 ft long
Cable extensionExtension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable.
(Condition of CE compliance: less tan 20 m 65.617 ft) (however, supply voltage 12 V DC or more)
WeightNet weight: 55 g approx., Gross weight: 80 g approx.
RemarkWhere measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23℃ +73.4℉.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
