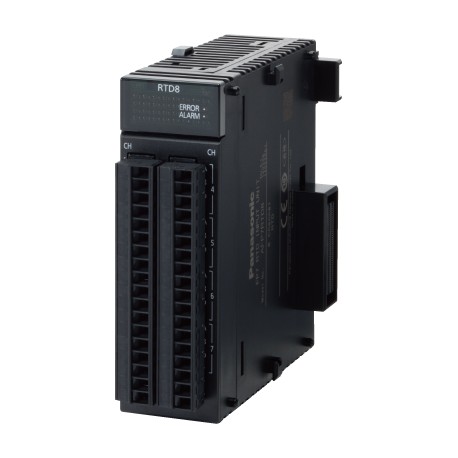

AFP7RTD8 PANASONIC FP7 temperature sensors unit 8 channels (triplex), PT100(-215°C bis +665°C), jPT100, Pt10..
AFP7RTD8
AFP7RTD8
PANASONIC
1 unit
Automation > FP7 Programmable controllers
FP7 Programmable controllers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
AFP7RTD8 PANASONIC FP7 temperature sensors unit is an analog input card utilized in industrial process control to interface resistance thermometer detectors for continuous thermal monitoring. Temperature measurement units convert probe resistance variations into readable data for environmental and thermal regulation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Number: AFP7RTD8
- Part Number: AFP7RTD8
- Product: FP7 Temperature input units
- Product name: FP7 Temperature input units
- Number of channels: 8 channels
- Allowable signal source resistance: R.T.D. input: 30 Ohm (three wires balanced)
- Insulation method: Between channels: PhotoMOS relay
- Conversion execution / non-execution channel setting: Selectable per channel unit
- Input range change method: Selectable per channel
- Digital processing: Averaging: Cycle, time, moving
- Digital processing: Offset setting: Any value within plus or minus 3,000
- Digital processing: Gain setting: plus or minus 10%
- Comparison of upper and lower limit values: Selectable for one channel
- Max. and min. value holding: Selectable for one channel
More info
▲| Product Number | AFP7RTD8 |
| Part Number | AFP7RTD8 |
| Product | FP7 Temperature input units |
| Product name | FP7 Temperature input units |
| Item | Specifications |
|---|---|
| Product Number | AFP7RTD8 |
| Part Number | AFP7RTD8 |
| Number of channels | 8 channels |
| Input range(resolution): Resistance temperature detector (resolution: 0.1 ºC) | Pt100 (1): -100.0 to 200.0degrees Pt100 (2): -200.0 to 650.0degrees JPt100 (1): -100.0 to 200.0degrees JPt100 (2): -200.0 to 650.0degrees Pt1000: -100.0 to 100.0degrees |
| Conversion speed | 25 ms/channel + 25 ms Add the drift compensation measuring time to the number of measuring channels. |
| Overall accuracy | plus or minus 0.1%F.S.or less(at +25degrees +77degrees Fahrenheit ) plus or minus 0.3%F.S.or less(at 0 to +55degrees +32 to +131degrees Fahrenheit ) |
| Allowable signal source resistance | R.T.D. input: 30 Ohm (three wires balanced) |
| Insulation method:Between input terminals and internal circuit | Photocoupler and isolated DC/DC converter |
| Insulation method:Between channels | PhotoMOS relay |
| Conversion execution / non-execution channel setting | Selectable per channel unit |
| Input range change method | Selectable per channel |
| Digital processing:Averaging | Cycle, time, moving |
| Digital processing:Offset setting | Any value within plus or minus 3,000 |
| Digital processing:Gain setting | plus or minus 10% |
| Comparison of upper and lower limit values | Selectable for one channel |
| Max. and min. value holding | Selectable for one channel |
| Broken wire detection | Available |
| Connection method | Connector type terminal block |
