View larger
Images are for illustrative purposes only. Please refer to data sheet for details

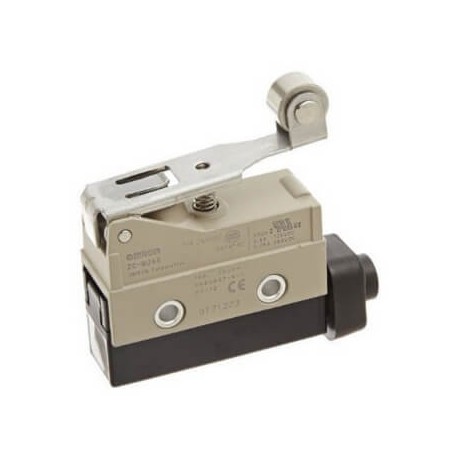

ZC-W255 ZC557400E ZCW255 OMRON The end of the race miniature
ZC-W255
ZC557400E
ZCW255
OMRON
10 Pcs.
The end of the race miniature
Enclosed basic switch, short hinge roller lever, SPDT, 15A
Automation > End switch
ZC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Material housingMetalDegree of protection (IP)IP67Actuator typeHinge roller leverActuator detailLever radius 50 mmConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Roller lever |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Other |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| Switching function latching (EF007447) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Forced opening (EF006694) | No |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.05 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 5 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.03 A |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 10 A |
| Width sensor (EF007094) | 70 mm |
| Height of sensor (EF007283) | 65 mm |
| Length of sensor (EF007334) | 21.7 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
