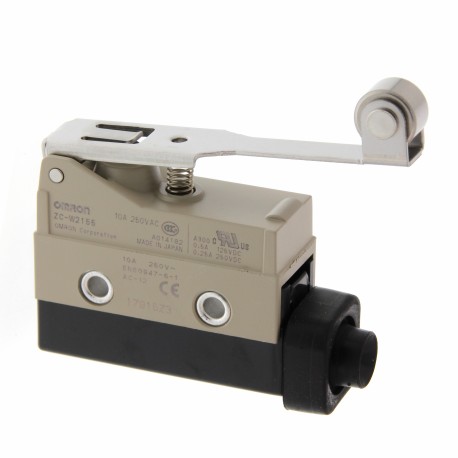

OMRON ZC-W2155 ZC-W2155 ZC557401C ZCW2155 OMRON The end of the race miniature View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZC-W2155 ZC557401C ZCW2155 OMRON The end of the race miniature

ZC-W2155

ZC557401C

ZCW2155

OMRON

1 Pcs.

The end of the race miniature Enclosed basic switch, hinge roller lever, SPDT, 15 A

Automation > End switch
ZC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Miniature position sensing in tight industrial spaces is achieved using the ZC-W2155 Omron limit switch, which detects physical contact from moving machine components and converts it into electrical control signals. These versatile switches are commonly deployed across assembly lines and material handling machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Roller lever
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 5 A

More info

▲
Material housingMetalDegree of protection (IP)IP67Actuator typeHinge roller leverActuator detailLever radius 70 mmConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
