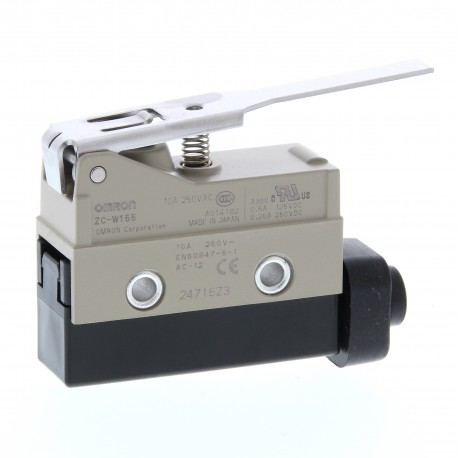

OMRON ZC-W155 ZC-W155 ZC557101D ZCW155 OMRON The end of the race miniature View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZC-W155 ZC557101D ZCW155 OMRON The end of the race miniature

ZC-W155

ZC557101D

ZCW155

OMRON

10 Pcs.

The end of the race miniature Enclosed basic switch, hinge lever, SPDT, 15 A

Automation > End switch
ZC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron ZC-W155 miniature limit switch provides dependable mechanical feedback in automation systems by tracking precise positional changes of moving machine parts. Such switches ensure proper sequence timing and operational safety in industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Rotary lever
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 5 A

More info

▲
Material housingMetalDegree of protection (IP)IP67Actuator typeHinge leverActuator detailLever radius 70 mmConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication
