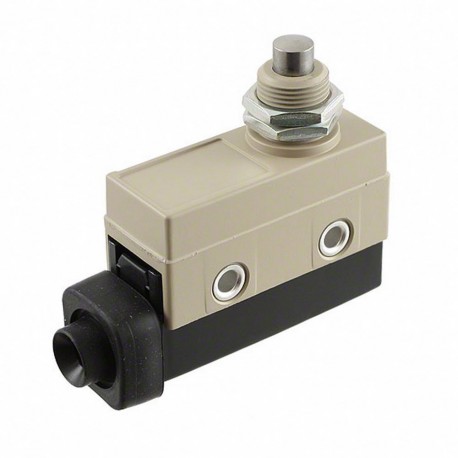

OMRON ZC-Q55 ZC-Q55 ZC552000B ZCQ55 OMRON Plunger panel Mounting High precision View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZC-Q55 ZC552000B ZCQ55 OMRON Plunger panel Mounting High precision

ZC-Q55

ZC552000B

ZCQ55

OMRON

10 Pcs.

Plunger panel Mounting High precision Enclosed basic switch, panel mount plunger, SPDT, 15A

Automation > End switch
ZC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ZC-Q55 Omron position switch is an electromechanical sensor engineered to register physical travel limits and component presence in automated industrial machinery. Such devices translate mechanical displacement into discrete electrical switching signals for control circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 5 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.03 A
  • Number of contacts as normally closed contact (EF008255): 0

More info

▲
Material housingMetalDegree of protection (IP)IP67Actuator typePlungerActuator detailWith M14 mountingConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication
