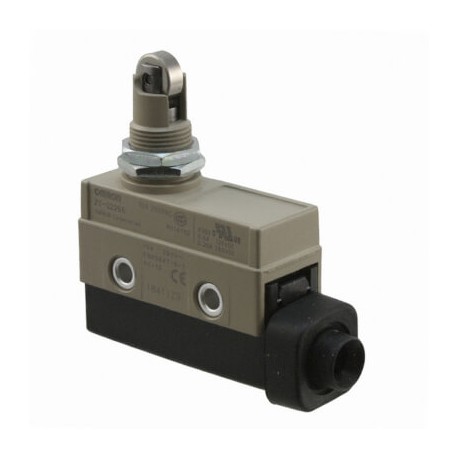

OMRON ZC-Q2255 ZC-Q2255 ZC554000C ZCQ2255 OMRON Plunger roller plunger panel Mounting High precision Cable right View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZC-Q2255 ZC554000C ZCQ2255 OMRON Plunger roller plunger panel Mounting High precision Cable right

ZC-Q2255

ZC554000C

ZCQ2255

OMRON

10 Pcs.

Plunger roller plunger panel Mounting High precision Cable right Enclosed basic switch, panel mount roller plunger, SPDT, 15A

Automation > End switch
ZC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron ZC-Q2255 plunger roller plunger panel mounting switch functions as a precision electromechanical sensor deployed in industrial production lines to verify component positions and restrict machinery travel boundaries. Limit switches integrate into control panels and mechanical housings to interrupt or establish electrical continuity upon physical actuation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.05 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 5 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.03 A
  • Number of contacts as normally closed contact (EF008255): 0

More info

▲
Material housingMetalDegree of protection (IP)IP67Actuator typeRoller plungerActuator detailWith M14 mountingConnection methodTerminal blockConduit size8.5 - 10.5 mm cable dia.Cable entry directionLeft or RightNumber of contacts, normally-open0Number of contacts, normally-closed0Number of contacts, change-over1Make before breakSwitch actionSnap actionLoad typeStandard loadWith status indication

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
