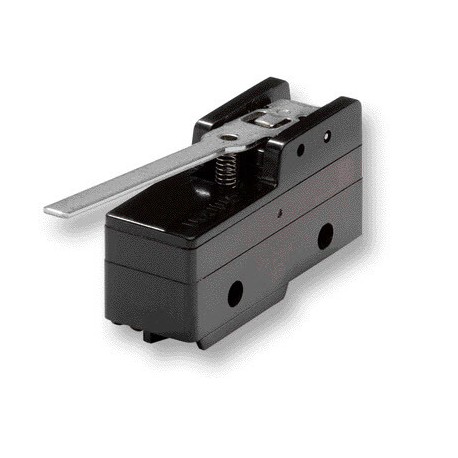

Z-15GD Z15G1325D Z15GDOMI OMRON End of stroke basic
Z-15GD
Z15G1325D
Z15GDOMI
OMRON
20 Pcs.
Automation > End switch
Z15
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Z-15GD Omron end of stroke basic switch functions as a compact electromechanical component used inside machinery housings to verify the precise termination of a movement cycle. These fundamental snap-action switches are widely integrated into control equipment, appliances, and industrial actuators for reliable switching performance. All pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- 125 VAC: 15 A
- 250 VAC: 15 A
- 8 VDC: 15 A
- 14 VDC: 15 A
- 30 VDC: 6 A
- 125 VDC: 0.5 A 3
- Durability: Mechanical
- Electrical: 500,000 operations min.
- Operating speed: Plunger
- Operating frequency: Mechanical
- Electrical: 20 operations/min
- Ambient temperature: Operating
- Degree of protection: IP00
- metal: AP1-A
- Construction type housing: Cuboid
- Degree of protection (IP): IP00
More info
▲Limit switch with basic plastic housing
The Z series of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. But with the basic plastic housing the basic switches are an ideal solution with best value for money for uncritical environments or when separately encased in subassemblies.
- Cost efficient basic plastic housing for subassemblies
- Same electrical and mechanical switching ratings as standard limit switches
Actuator type1 | Order code2 | ||
|---|---|---|---|
Specifications
0.5 A3 | ||||||||
Accessories
Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)
![]() ![]() | Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch. | |||
![]() | ||||
