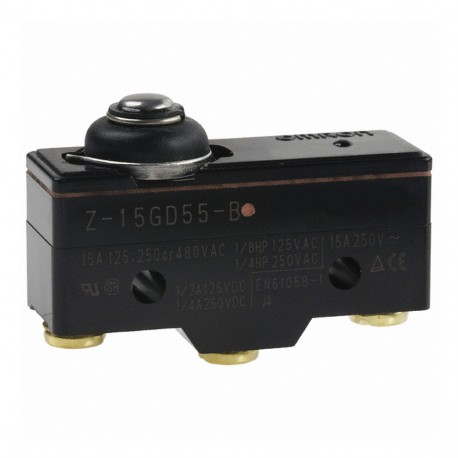

OMRON Z-15GD-B8 Z-15GD-B8 Z15G3004C Z15GDB8 OMRON Basic switch, short plunger, SPDT, 15A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-15GD-B8 Z15G3004C Z15GDB8 OMRON Basic switch, short plunger, SPDT, 15A

Z-15GD-B8

Z15G3004C

Z15GDB8

OMRON

20 Pcs.

Basic switch, short plunger, SPDT, 15A

Automation > End switch
Z15

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron basic switch is a compact electromechanical component deployed within electrical appliances and control panels to reliably open or close circuits via external mechanical actuation. These versatile parts are standard across industrial control architectures for precision switching tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 125 VAC: 15 A
  • 250 VAC: 15 A
  • 8 VDC: 15 A
  • 14 VDC: 15 A
  • 30 VDC: 6 A
  • 125 VDC: 0.5 A 3
  • Durability: Mechanical
  • Electrical: 500,000 operations min.
  • Operating speed: Plunger
  • Operating frequency: Mechanical
  • Electrical: 20 operations/min
  • Ambient temperature: Operating
  • Degree of protection: IP00
  • metal: AP1-A

More info

▲
  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches

Specifications & ordering info

Ordering information

Actuator type1

Order code2

Solder terminal

Screw terminal

Pin plunger

Z-15G

Z-15G-B

Short spring plunger

Z-15GD

Z-15GD-B

Leaf spring

Z-15GL

Z-15GL-B

Reverse hinge lever

Z-15GM

Z-15GM-B

Reverse hinge roller lever

Z-15GM2

Z-15GM2-B

Plunger with M12 mounting

Z-15GQ

Z-15GQ-B

Hinge lever

Z-15GW

Z-15GW-B

Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications

Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A3

0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories

Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models

Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B

Cover with bottom cable exit

AP-Z

1.Other actuator types are available. For the full range refer to the complete datasheet.

2.Contacts are directly accessible. Additional protective measures are required e.g. order covers from accessories.

3.For switching high currents at high voltages (e.g. 10A at 125VDC) contact your OMRON representative.


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
