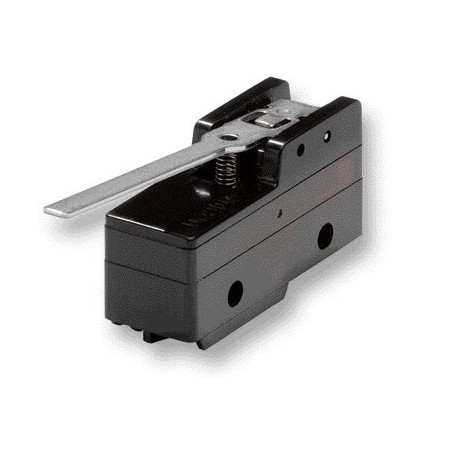

Z-10FDY-B Z10F3001F Z10FDYB OMRON End of stroke basic
Z-10FDY-B
Z10F3001F
Z10FDYB
OMRON
20 Pcs.
Automation > End switch
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron part number Z-10FDY-B is an end of stroke basic switch designed for internal integration into electrical appliances, control devices, and automation sub-assemblies. Basic snap-action switches provide highly repeatable on-off switching capabilities for precise mechanical actuation tasks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- 125 VAC: 15 A
- 250 VAC: 15 A
- 8 VDC: 15 A
- 14 VDC: 15 A
- 30 VDC: 6 A
- 125 VDC: 0.5 A 3
- Durability: Mechanical
- Electrical: 500,000 operations min.
- Operating speed: Plunger
- Operating frequency: Mechanical
- Electrical: 20 operations/min
- Ambient temperature: Operating
- Degree of protection: IP00
- metal: AP1-A
More info
▲- Cost efficient basic plastic housing for subassemblies
- Same electrical and mechanical switching ratings as standard limit switches
Specifications & ordering info
Ordering information
Actuator type1 | Order code2 | ||
|---|---|---|---|
Specifications
0.5 A3 | ||||||||
Accessories
Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)
Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch. | ||||
