View larger
Images are for illustrative purposes only. Please refer to data sheet for details

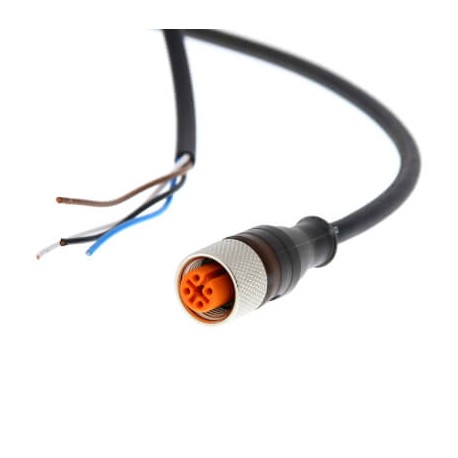

Y92E-M12PUR4S2M-L AA018037C Y92EM12PUR4S2ML OMRON With Straight cable 4-wire, 2 m PUR M12
Y92E-M12PUR4S2M-L
AA018037C
Y92EM12PUR4S2ML
OMRON
1 Pcs.
With Straight cable 4-wire, 2 m PUR M12
Sensor cable, M12 straight socket (female), 4-poles, PUR cable, 2 m
Automation > Sensor-actuator patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
UsageCable with connectorConnector 1M12 straight socketConnector 2Open endsNumber of pin contact4Cable specificationsPURCable length2 mColorBlackColor coverBlackMaterial nutBrassLED indicator
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M12 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Black |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Material of contact surface (EF004020) | Other |
| Material contact body (EF008248) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Material of cable sheath (EF004136) | Polyurethane (PUR) |
| Type of electrical connection, box-sided (EF005524) | Free conductor end |
| Screened (EF000881) | No |
| Halogen free (EF000025) | Yes |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Rated voltage (EF000228) | 240 V |
| Cable length (EF000536) | 2 m |
| Rated current In (EF008250) | 4 A |
| Number of poles (EF001391) | 4 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
