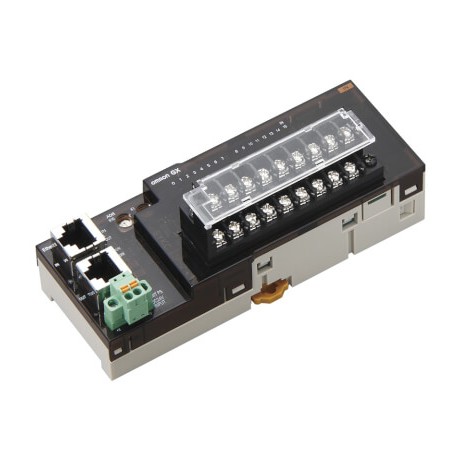

OMRON XWT-OD08 XWT-OD08 XWT 7005M XWTOD08CHN OMRON Module Expansion 8 Outputs NPN

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

XWT-OD08 XWT 7005M XWTOD08CHN OMRON Module Expansion 8 Outputs NPN

Name: XWT-OD08 XWT 7005M XWTOD08CHN OMRON Module Expansion 8 Outputs NPN
Brand: OMRON
SKU: XWT 7005M

Reference: XWT-OD08

Code: XWT 7005M

Catalog Number: XWTOD08CHN

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Module Expansion 8 Outputs NPN Expansion Module 8 NPN Outputs

Categories:
Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Features

When speed counts: EtherCAT I/O

EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.

Compact size IP20 housing
Expandable digital I/Os
Detachable I/O terminal blocks
Selectable high-speed input response time

Ordering information

Unit Type	Specification	Size in mm (H×W×D)	Remarks	Order code
16-point NPN input unit	24 VDC, 6 mA per point	52×135×57	Expandable with one XWT unit	GX-ID1611
16-point NPN input unit	24 VDC, 6 mA per point	52×200×69	3-tier connection for direct sensor wiring	GX-ID1612
16-point PNP input unit	24 VDC, 6 mA per point	52×135×57	Expandable with one XWT unit	GX-ID1621
16-point PNP input unit	24 VDC, 6 mA per point	52×200×69	3-tier connection for direct sensor wiring	GX-ID1622
16-point relay output unit	2 A per point, max. 8 A per common	52×160×58	with easy-to-replace relays, expandable with one XWT unit	GX-OC1601
16-point NPN output unit	24 VDC, 0.5 A per point	52×135×57	Expandable with one XWT unit	GX-OD1611
16-point NPN output unit	24 VDC, 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-OD1612
16-point PNP output unit	24 VDC, 0.5 A per point	52×135×57	Expandable with one XWT unit	GX-OD1621
16-point PNP output unit	24 VDC, 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-OD1622
8-point input + 8-point output unit (NPN)	24 VDC, input 6 mA, output 0.5 A per point	52×135×57	-	GX-MD1611
8-point input + 8-point output unit (NPN)	24 VDC, input 6 mA, output 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-MD1612
8-point input + 8-point output unit (PNP)	24 VDC, input 6 mA, output 0.5 A per point	52×135×57	-	GX-MD1621
8-point input + 8-point output unit (PNP)	24 VDC, input 6 mA, output 0.5 A per point	52×200×69	3-tier connection for direct sensor wiring	GX-MD1622
4-Channel analog input unit	1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,	52×135×57	Resolution 1/6000, conversion time 4 ms (4 inputs)	GX-AD0471
2-Channel analog output unit	1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,	52×135×57	Resolution 1/6000, conversion time 2 ms (2 outputs)	GX-DA0271
1-Channel incremental encoder input (24V)	Open collector, up to 125 kHz	52×215×69	A, B, Z, 2 × Latch, Reset inputs	GX-EC0211
1-Channel incremental encoder input (line driver)	RS422 signal level, up to 1 MHz	52×215×69	A, B, Z, 2 × Latch, Reset inputs	GX-EC0241

Expansion units

Unit Type	Specification	Size in mm (H×W×D)	Remarks	Order code
8-point PNP input expansion unit	24 VDC, 6 mA per point	50×66×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-ID08-1
16-point PNP input expansion unit	24 VDC, 6 mA per point	50×94×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-ID16-1
8-point PNP output expansion unit	24 VDC, 0.5 A per point	50×66×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-OD08-1
16-point PNP output expansion unit	24 VDC, 0.5 A per point	50×94×50	Expansion unit for GX, DRT2 and CRT1 series	XWT-OD16-1
3 port branching uni	24 VDC, 3 x RJ45	90×25×78	EtherCAT junction box for T-branching	GX-JC03
6 port branching unit	24VDC, 6 x RJ45	90×48×78	EtherCAT junction box for star branching	GX-JC06

Note:To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.

View PDF Download
