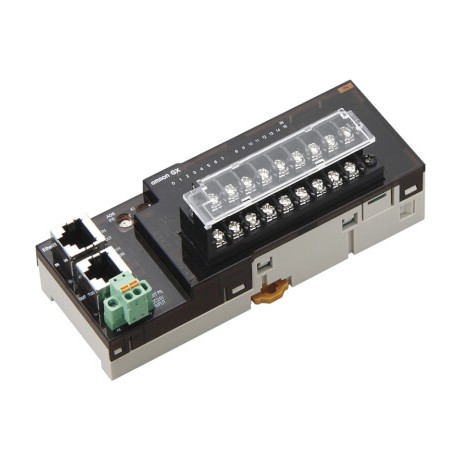

XWT-ID16 XWT 7002F XWTID16CHN OMRON Module Expansion 16 Inputs NPN
XWT-ID16
XWT 7002F
XWTID16CHN
OMRON
1 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An XWT-ID16 XWT 7002F XWTID16CHN OMRON Module Expansion 16 Inputs NPN is an expansion device utilized in automation setups to increase the digital signal handling capacity of a programmable logic controller system. Expansion modules connect to base units to accommodate additional sensors and switches as plant floor requirements grow.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 16-point NPN input unit: 24 VDC, 6 mA per point
- 16-point NPN input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 16-point relay output unit: 2 A per point, max. 8 A per common
- 16-point NPN output unit: 24 VDC, 0.5 A per point
- 16-point NPN output unit: 24 VDC, 0.5 A per point
- 16-point PNP output unit: 24 VDC, 0.5 A per point
- 16-point PNP output unit: 24 VDC, 0.5 A per point
- 8-point input + 8-point output unit (NPN): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (NPN): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (PNP): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (PNP): 24 VDC, input 6 mA, output 0.5 A per point
- 4-Channel analog input unit: 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,
- 2-Channel analog output unit: 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,
- 1-Channel incremental encoder input (24V): Open collector, up to 125 kHz
More info
▲When speed counts: EtherCAT I/O
EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.
- Compact size IP20 housing
- Expandable digital I/Os
- Detachable I/O terminal blocks
- Selectable high-speed input response time
