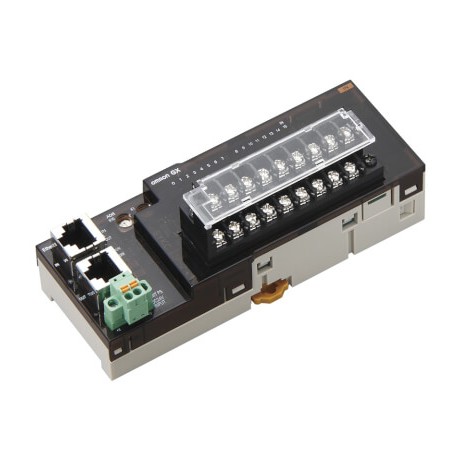

XWT-ID08 XWT 7000M XWTID08CHN OMRON Module Expansion 8 Inputs NPN
XWT-ID08
XWT 7000M
XWTID08CHN
OMRON
1 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron XWT-ID08 functions as an expansion module designed to scale input channel capacity in distributed control architectures. Such expansion units allow technicians to easily increase sensor monitoring points on existing industrial network nodes without replacing the main controller. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 16-point NPN input unit: 24 VDC, 6 mA per point
- 16-point NPN input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 16-point relay output unit: 2 A per point, max. 8 A per common
- 16-point NPN output unit: 24 VDC, 0.5 A per point
- 16-point NPN output unit: 24 VDC, 0.5 A per point
- 16-point PNP output unit: 24 VDC, 0.5 A per point
- 16-point PNP output unit: 24 VDC, 0.5 A per point
- 8-point input + 8-point output unit (NPN): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (NPN): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (PNP): 24 VDC, input 6 mA, output 0.5 A per point
- 8-point input + 8-point output unit (PNP): 24 VDC, input 6 mA, output 0.5 A per point
- 4-Channel analog input unit: 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,
- 2-Channel analog output unit: 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA,
- 1-Channel incremental encoder input (24V): Open collector, up to 125 kHz
More info
▲When speed counts: EtherCAT I/O
EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.
- Compact size IP20 housing
- Expandable digital I/Os
- Detachable I/O terminal blocks
- Selectable high-speed input response time
