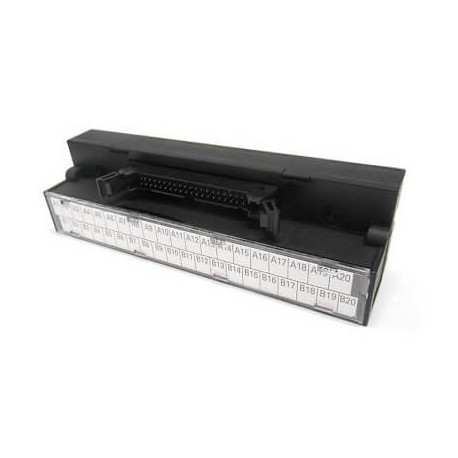

OMRON XW2D-20G6 XW2D-20G6 XW2D0046D XW2D20G6,3 OMRON General-purpose I/O terminal block, MIL20 socket, M3 captive screws, 20.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XW2D-20G6 XW2D0046D XW2D20G6,3 OMRON General-purpose I/O terminal block, MIL20 socket, M3 captive screws, 20..

XW2D-20G6

XW2D0046D

XW2D20G6.3

OMRON

1 Pcs.

General-purpose I/O terminal block, MIL20 socket, M3 captive screws, 20 points

Automation > Interface module
XW2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
3 wiring connection – power supply terminalConnector typeMIL (plug not included)External connection polarityPNP/NPNPositions per I/O connector20Relay premountedTerminal typePassive wiring interfaceType of I/O connectionInput/OutputType of relayNoneWiring methodScrew
ETIM for 703441 PLC's (EC002780)
Feature Name Feature Value
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Type of electrical connection, field-sided (EF005525) Screw connection
Pollution degree (EF006786) 1
Type of electrical connection, control sided (EF008549) Plug-in connection
Rated voltage (EF000228) 24 V
Rated current (EF000227) 1 A
Width (EF000008) 79 mm
Height (EF000040) 40 mm
Number of poles (EF001391) 20
Depth (EF000049) 39.1 mm
