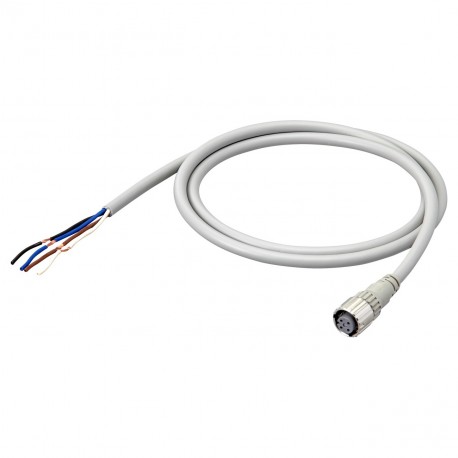

OMRON XS5F-D421-C80-F XS5F-D421-C80-F XS5F0006B XS5FD421C80F OMRON Cable M12 4h straight robot Smart click 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XS5F-D421-C80-F XS5F0006B XS5FD421C80F OMRON Cable M12 4h straight robot Smart click 1m

XS5F-D421-C80-F

XS5F0006B

XS5FD421C80F

OMRON

10 Pcs.

Cable M12 4h straight robot Smart click 1m Sensor cable, Smartclick M12 straight socket (female), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 1 m

Automation > Sensor-actuator patch cord
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron XS5F-D421-C80-F sensor and actuator cable provides dependable connectivity for industrial automation equipment exposed to washdown or harsh conditions. Such pre-wired plug assemblies ensure secure circuit continuity in automated cells.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection, field-sided (EF005525): M12
  • Cable type (EF000081): Multi-core
  • Colour cable sheath (EF008249): Grey
  • Degree of protection (IP) (EF005474): IP69K
  • Type of plug-in contact, field sided (EF006269): Female (bus)
  • Positioning cable feed, field-sided (EF005928): Straight
  • Material of contact surface (EF004020): Nickel/gold
  • Material contact body (EF008248): CuZn
  • Positioning cable feed, box-sided (EF005927): Straight
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of electrical connection, box-sided (EF005524): Free conductor end
  • Screened (EF000881): No
  • Halogen free (EF000025): No
  • Vulcanize (EF004115): No
  • With LED indication (EF005950): No
  • Continuity resistance (EF003992): 1040 mOhm

More info

▲
UsageCable with connectorConnector 1M12 straight socketConnector 2Open endsNumber of pin contact4Cable specificationsPVCCable length1 mFeaturesFire retardant, Robotic, SmartclickColorGreyColor coverGreyMaterial nutSUSLED indicator
