View larger
Images are for illustrative purposes only. Please refer to data sheet for details

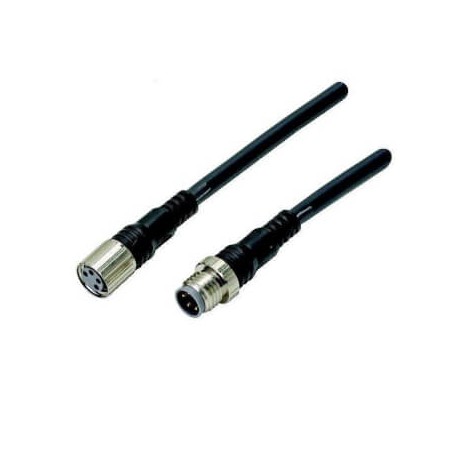

XS3W-M321-302-R XS3W0112F XS3WM321302R OMRON Cable M8 straight/straight 3hilos 2m robotic
XS3W-M321-302-R
XS3W0112F
XS3WM321302R
OMRON
5 Pcs.
Cable M8 straight/straight 3hilos 2m robotic
M8 Straight/Straight 3-wire Cable 2m robotic
Cable with connectors on both cable ends, M8 straight socket (female), M8 straight plug (male), 3-poles, PVC robot cable, IP67, 2 m
Automation > Sensor-actuator patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Usage | Extension cable |
| Connector 1 | M8 straight socket |
| Connector 2 | M8 straight plug |
| Number of pin contact | 3 |
| Cable specifications | PVC |
| Cable length | 2 m |
| Features | Robotic |
| Color | Black |
| Color cover | Black |
| Material nut | Brass |
| With LED indicator |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M8 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Black |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Material of contact surface (EF004020) | Nickel/gold |
| Material contact body (EF008248) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of electrical connection, box-sided (EF005524) | M8 |
| Screened (EF000881) | No |
| Halogen free (EF000025) | No |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Continuity resistance (EF003992) | 40 mOhm |
| Rated voltage (EF000228) | 125 V |
| Cable length (EF000536) | 2 m |
| Rated current In (EF008250) | 1 A |
| Number of poles (EF001391) | 3 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
