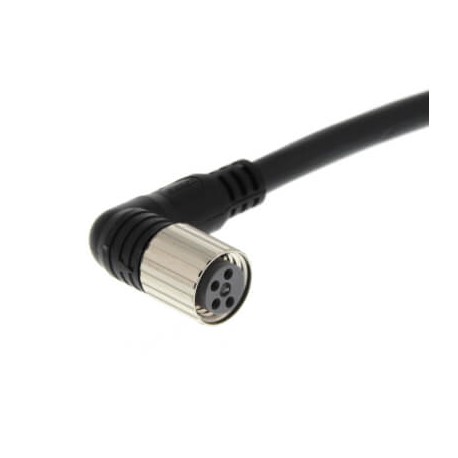

OMRON XS3F-M422-405-R XS3F-M422-405-R XS3F0006E XS3FM422405R OMRON With cable, Angled, 4 wire, 5m M8 Robotic View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XS3F-M422-405-R XS3F0006E XS3FM422405R OMRON With cable, Angled, 4 wire, 5m M8 Robotic

XS3F-M422-405-R

XS3F0006E

XS3FM422405R

OMRON

5 Pcs.

With cable, Angled, 4 wire, 5m M8 Robotic Sensor cable, M8 right-angle socket (female), 4-poles, PVC robot cable, IP67, 5 m

Automation > Sensor-actuator patch cord
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-flex robotic and moving machinery applications, the Omron XS3F-M422-405-R sensor cable maintains dependable signal integrity under continuous mechanical stress. Flexible factory automation cabling ensures uninterrupted communication between distributed instrumentation and control hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection, field-sided: M8
  • Cable type: Multi-core
  • Colour cable sheath: Black
  • Degree of protection (IP): IP67
  • Type of plug-in contact, field sided: Female (bus)
  • Positioning cable feed, field-sided: Angled
  • Material of contact surface: Nickel/gold
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of electrical connection, box-sided: Free conductor end
  • Screened: No
  • Halogen free: No
  • Vulcanize: No
  • With LED indication: No
  • Continuity resistance: 40 mOhm
  • Rated voltage: 125 V
  • Cable length: 5 m

More info

▲
UsageCable with connectorConnector 1M8 right-angle socketConnector 2Open endsNumber of pin contact4Cable specificationsPVCCable length5 mFeaturesRoboticColorBlackColor coverBlackMaterial nutBrassLED indicator

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
