View larger
Images are for illustrative purposes only. Please refer to data sheet for details

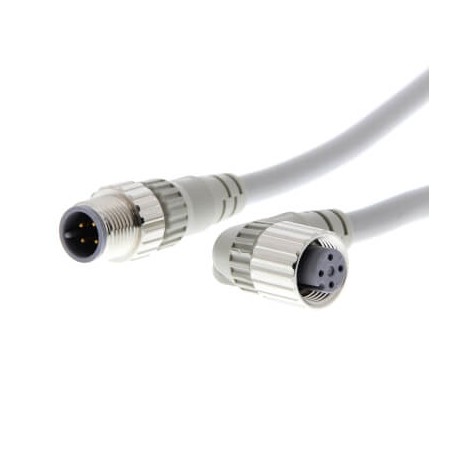

XS2W-D424-G81-F XS2W0397D XS2WD424G81F OMRON Sensors cable (4-wire), connector both ends (angled M12 socket,..
XS2W-D424-G81-F
XS2W0397D
XS2WD424G81F
OMRON
1 Pcs.
Sensors cable (4-wire), connector both ends (angled M12 socket, straight M12 plug, robot and fire retardant, 5m
Cable with connectors on both cable ends, M12 right-angle socket (female), M12 straight plug (male), 4-poles, A coded, PVC fire-retardant robot cable, IP67, 5 m
Automation > Sensor-actuator patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
UsageExtension cableConnector 1M12 right-angle socketConnector 2M12 straight plugNumber of pin contact4Cable specificationsPVCCable length5 mFeaturesFire retardant, RoboticColorGreyColor coverGreyMaterial nutBrassLED indicator
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M12 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Grey |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Angled |
| Material of contact surface (EF004020) | Nickel/gold |
| Material contact body (EF008248) | CuSn |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Screened (EF000881) | No |
| Halogen free (EF000025) | No |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Continuity resistance (EF003992) | 40 mOhm |
| Rated voltage (EF000228) | 250 V |
| Cable length (EF000536) | 5 m |
| Rated current In (EF008250) | 4 A |
| Number of poles (EF001391) | 4 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
