View larger
Images are for illustrative purposes only. Please refer to data sheet for details

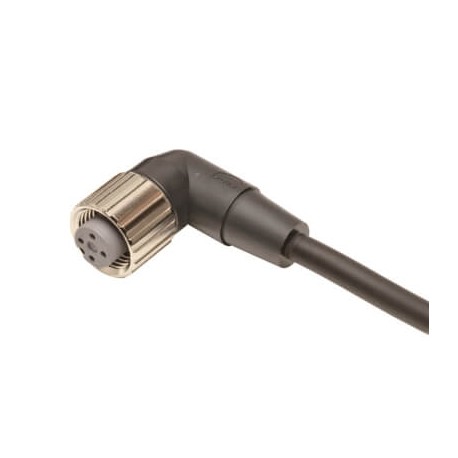

XS2F-M12PUR5A5M XS2F0698A XS2FM12PUR5A5M,1 OMRON M12 PUR cable right Angle 5-wire 5m
XS2F-M12PUR5A5M
XS2F0698A
XS2FM12PUR5A5M.1
OMRON
1 Pcs.
M12 PUR cable right Angle 5-wire 5m
Sensor cable, M12 right-angle socket (female), 5-poles, A coded, PUR fire-retardant halogen free cable, IP67, 5 m
Automation > Sensor-actuator patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Usage | Cable with connector |
| Connector 1 | M12 right-angle socket |
| Connector 2 | Open ends |
| Number of pin contact | 5 |
| Cable specifications | PUR |
| Cable length | 5 m |
| Features | Fire retardant, Halogen free, Oil-resistant |
| Color | Black |
| Color cover | Black |
| Material nut | Brass |
| LED indicator |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M12 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Black |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Angled |
| Material of contact surface (EF004020) | Nickel/gold |
| Material contact body (EF008248) | CuZn |
| Positioning cable feed, box-sided (EF005927) | Other |
| Material of cable sheath (EF004136) | Polyurethane (PUR) |
| Type of electrical connection, box-sided (EF005524) | Free conductor end |
| Screened (EF000881) | No |
| Halogen free (EF000025) | Yes |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Continuity resistance (EF003992) | 40 mOhm |
| Rated voltage (EF000228) | 125 V |
| Cable length (EF000536) | 5 m |
| Rated current In (EF008250) | 4 A |
| Number of poles (EF001391) | 5 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -10 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -10 °C |
