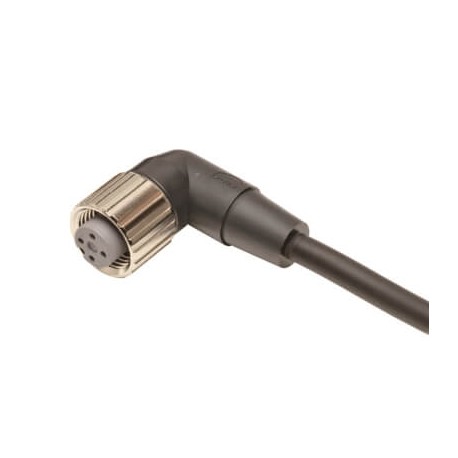

OMRON XS2F-M12PUR3A5M XS2F-M12PUR3A5M XS2F0683C XS2FM12PUR3A5M,1 OMRON M12 PUR cable right Angle 3-wire 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XS2F-M12PUR3A5M XS2F0683C XS2FM12PUR3A5M,1 OMRON M12 PUR cable right Angle 3-wire 5m

XS2F-M12PUR3A5M

XS2F0683C

XS2FM12PUR3A5M.1

OMRON

1 Pcs.

M12 PUR cable right Angle 3-wire 5m Sensor cable, M12 right-angle socket (female), 3-poles, A coded, PUR fire-retardant halogen free cable, IP67, 5 m

Automation > Sensor-actuator patch cord
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number XS2F-M12PUR3A5M is an Omron M12 PUR cable right Angle 3-wire 5m designed for interfacing sensors and actuators with industrial automation architectures. Flexible multi-core cabling solutions provide reliable signal and power routing inside automated machinery and process control loops.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection, field-sided (EF005525): M12
  • Cable type (EF000081): Multi-core
  • Colour cable sheath (EF008249): Black
  • Degree of protection (IP) (EF005474): IP67
  • Type of plug-in contact, field sided (EF006269): Female (bus)
  • Positioning cable feed, field-sided (EF005928): Right-angled
  • Material of contact surface (EF004020): Gold
  • Type of plug-in contact, box-sided (EF008386): Male (plug)
  • Material of cable sheath (EF004136): Polyurethane (PUR)
  • Type of electrical connection, box-sided (EF005524): Free conductor end
  • Screened (EF000881): No
  • Halogen free (EF000025): Yes
  • Vulcanize (EF004115): No
  • With LED indication (EF005950): No
  • Continuity resistance (EF003992): 40 mOhm
  • Rated voltage (EF000228): 125 V

More info

▲
UsageCable with connectorConnector 1M12 right-angle socketConnector 2Open endsNumber of pin contact3Cable specificationsPURCable length5 mFeaturesFire retardant, Halogen free, Oil-resistantColorBlackColor coverBlackMaterial nutBrassLED indicator

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
